Keithley 2280S-60-3
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 60 V |
| Output Current Range | 0 to 3 A |
| Maximum Output Power | 180 W |
| Voltage Readback Accuracy | 0.025% + 37.5 mV |
| Current Readback Accuracy | 0.05% + 3.75 mA |
| Output Noise (Voltage, 20 Hz–20 MHz) | <3 mVrms |
| Interfaces | USB, LAN (LXI), GPIB (optional) |
| Display | 4.3-inch color TFT touchscreen LCD |
| Operating Temperature | 0°C to 40°C |
| AC Input Power | 100–240 VAC, 50/60 Hz, 400 VA maximum |
Keithley 2280S-60-3 Options:
- 2280S-60-3 - 2280S-60-3-EW - 1 Additional Year of Factory Warranty (total of 4 years)
- 2280S-60-3 - 2280S-60-3-5Y-EW - 2 Additional Years of Factory Warranty beyond the 3-Year factory warranty (total of 5 years)
- 2280S-60-3 - C/2280S-60-3-3Y-STD - 3 Calibrations Within 3 Years of Purchase
- 2280S-60-3 - C/2280S-60-3-3Y-DATA - 3 (ANSI-Z540-1 compliant) Calibrations Within 3 Years of Purchase
- 2280S-60-3 - C/2280S-60-3-3Y-1702 - 3 (ISO 17025 Accredited) Calibrations within 3 Years of Purchase
- 2280S-60-3 - C/2280S-60-3-5Y-STD - 5 Calibrations Within 5 Years of Purchase
- 2280S-60-3 - C/2280S-60-3-5Y-DATA - 5 (ANSI-Z540-1 compliant) Calibrations Within 5 Years of Purchase
- 2280S-60-3 - C/2280S-60-3-5Y-1702 - 5 (ISO 17025 Accredited) Calibrations within 5 Years of Purchase
| Model | 2280S-60-3 |
|---|

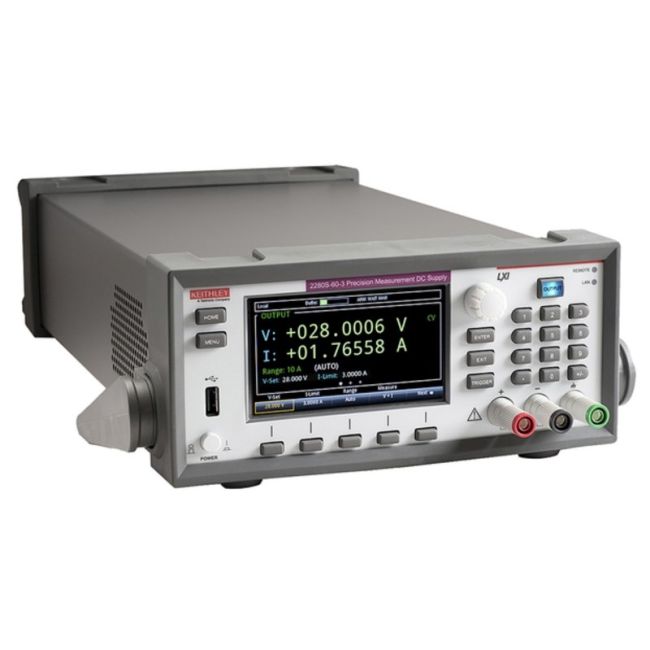

The Keithley 2280S-60-3 Precision Measurement DC Power Supply provides up to 60V at 3.2A with ultra-low noise and high accuracy. Featuring 6½-digit resolution, it measures voltages down to 100μV and currents from 100nA to 6A across four ranges with excellent accuracy. Equipped with a high-resolution TFT display, it offers linear regulation, built-in plotting, and multiple communication interfaces.
Ideal for benchtop and automated applications, it supports fast dynamic load current capture, programmable sequences, and semi-automated testing. KickStart software enables effortless test automation.
Testwall can supply the used Keithley 2280S-60-3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2280S-60-3.
