Keithley

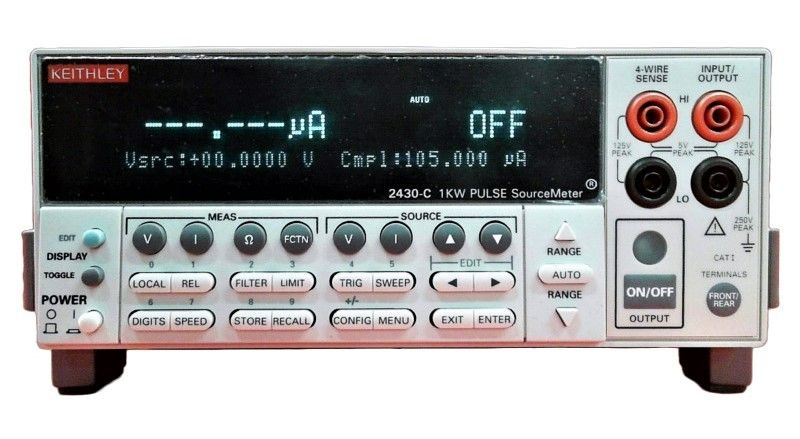

Keithley 2430
1kW Pulse Mode SourceMeter
SourceMeter (SMU) Instrument type
1 Number of channels
±105 V Maximum voltage (source/measure)
±3.15 A Maximum current (DC)
±10.5 A Maximum current (pulse)
| Attribute | Value |
|---|---|
| Instrument type | SourceMeter (SMU) |
| Number of channels | 1 |
| Maximum voltage (source/measure) | ±105 V |
| Maximum current (DC) | ±3.15 A |
| Maximum current (pulse) | ±10.5 A |
| Maximum power (pulse) | 1100 W |
| Measurement resolution | 5½ digits |
| Interfaces | GPIB, RS-232 |
| Programming | SCPI |
The Keithley 2430 is a 2400-series SourceMeter with a 1 kW pulse mode, delivering up to 10.5 A pulsed and 3 A DC at up to 100 V. It pairs a precision source with a 5½-digit DMM, so high-power devices such as laser diodes, varistors, thermistors and power semiconductors can be characterised without overheating. GPIB and RS-232 interfaces allow straightforward system integration.
Testwall can supply the used Keithley 2430 fully tested, with calibration available on request and delivery across Europe. Send us your requirements and ask for a quote.
