Keithley

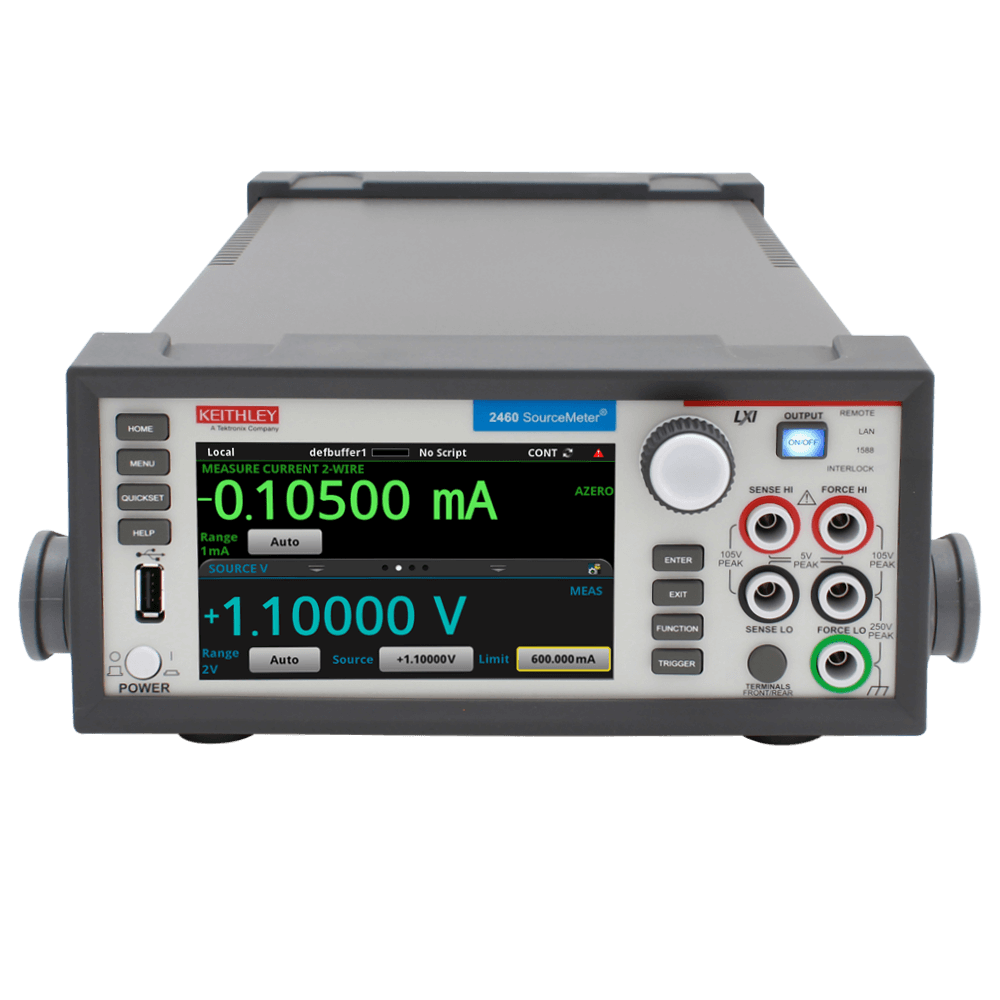

Keithley 2460
100V, 7A Graphical SourceMeter
Graphical SourceMeter (SMU) Instrument type
1 Number of channels
±100 V Maximum voltage (source/measure)
±7 A Maximum current (DC)
100 W Maximum power (DC)
| Attribute | Value |
|---|---|
| Instrument type | Graphical SourceMeter (SMU) |
| Number of channels | 1 |
| Maximum voltage (source/measure) | ±100 V |
| Maximum current (DC) | ±7 A |
| Maximum power (DC) | 100 W |
| Minimum voltage resolution | 100 nV |
| Measurement resolution | 6½ digits |
| Display | 5-inch capacitive touchscreen |
| Interfaces | USB, GPIB, LAN (LXI), Digital I/O, TSP-Link |
| Programming | SCPI, TSP |
The Keithley 2460 is a high-current graphical SourceMeter that sources and measures up to 100 V and 7 A DC with 100 W of power. It combines a precision power supply, current source, 6½-digit DMM and electronic load, controlled from a 5-inch capacitive touchscreen. Typical applications include characterising power semiconductors, LEDs, batteries, solar cells and DC-DC converters, with SCPI and TSP scripting for automation.
Testwall can supply the used Keithley 2460 fully tested, with calibration available on request and delivery across Europe. Send us your requirements and ask for a quote.
