Keithley

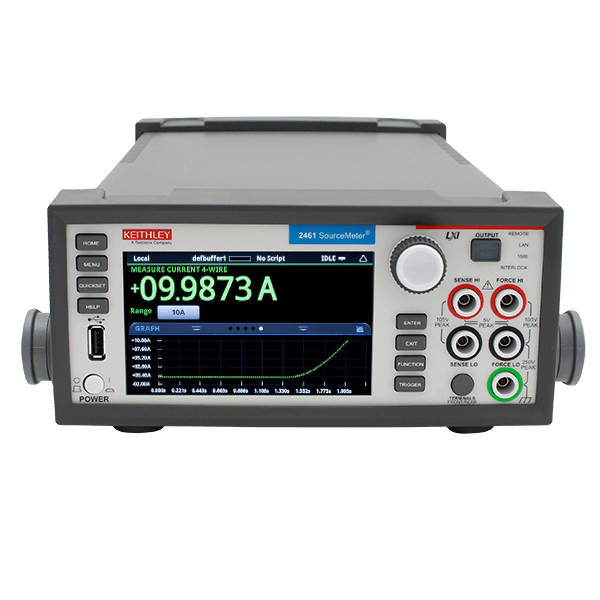

Keithley 2461
100V, 10A Pulse Graphical SourceMeter
Graphical SourceMeter (SMU) Instrument type
1 Number of channels
±100 V Maximum voltage (source/measure)
±7 A Maximum current (DC)
±10 A Maximum current (pulse)
| Attribute | Value |
|---|---|
| Instrument type | Graphical SourceMeter (SMU) |
| Number of channels | 1 |
| Maximum voltage (source/measure) | ±100 V |
| Maximum current (DC) | ±7 A |
| Maximum current (pulse) | ±10 A |
| Maximum power (DC) | 100 W |
| Maximum power (pulse) | 1000 W |
| Digitiser | 2 × 18 bit, 1 MS/s |
| Measurement resolution | 6½ digits |
| Display | 5-inch capacitive touchscreen |
| Interfaces | USB, GPIB, LAN (LXI), Digital I/O, TSP-Link |
| Programming | SCPI, TSP |
The Keithley 2461 is a high-current graphical SourceMeter rated to 100 V, 7 A DC and 10 A pulsed, with 1000 W pulse capability. Dual 18-bit, 1 MS/s digitisers capture transient behaviour alongside conventional source-measure readings, all controlled from a 5-inch touchscreen. It is well suited to testing power MOSFETs, IGBTs, LEDs and battery cells where high-current pulses must be measured accurately.
Testwall can supply the used Keithley 2461 fully tested, with calibration available on request and delivery across Europe. Send us your requirements and ask for a quote.
