Keithley

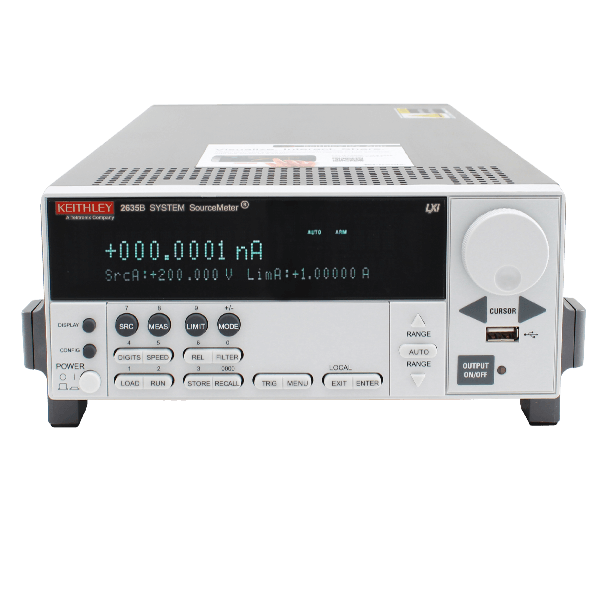

Keithley 2635B
Single-Channel Low-Current System SourceMeter
SourceMeter (SMU) Instrument type
1 Number of channels
±200 V Maximum voltage (source/measure)
±1.5 A Maximum current (DC)
±10 A Maximum current (pulse)
| Attribute | Value |
|---|---|
| Instrument type | SourceMeter (SMU) |
| Number of channels | 1 |
| Maximum voltage (source/measure) | ±200 V |
| Maximum current (DC) | ±1.5 A |
| Maximum current (pulse) | ±10 A |
| Maximum power (DC) | 30.6 W |
| Minimum current resolution | 0.1 fA |
| Minimum voltage resolution | 1 µV |
| Measurement resolution | 6½ digits |
| Interfaces | GPIB, USB, LAN (LXI), RS-232, Digital I/O, TSP-Link |
| Programming | TSP (Lua) |
The Keithley 2635B is a single-channel System SourceMeter optimised for low-current measurements, with 0.1 fA resolution and a 200 V, 1.5 A DC (10 A pulse) range. It is suited to characterising low-leakage semiconductors, nanodevices and high-resistance materials, and supports TSP scripting and TSP-Link for building multi-channel test systems.
Testwall can supply the used Keithley 2635B fully tested, with calibration available on request and delivery across Europe. Send us your requirements and ask for a quote.
