Keithley 4211-SMU
| Attribute | Value |
|---|---|
| Voltage Source Range | ±210 V |
| Current Source Range | ±1 A |
| Minimum Current Measurement Resolution | 100 fA |
| Voltage Measurement Resolution | 1 µV |
| Maximum Power Output | 30 W |
| Number of Channels | 1 |
| Interface/Connectivity | Compatible with Keithley 4200A-SCS Parameter Analyzer (plug-in module) |
| Measurement Functions | Voltage sourcing, current sourcing, voltage measurement, current measurement (4-quadrant operation) |
| Current Measurement Accuracy | 0.1% basic accuracy |
| Form Factor | Plug-in SMU module for the Keithley 4200A-SCS mainframe |
Keithley 4211-SMU Options:
- 4211-SMU - 4211-SMU-R - Field Installable, High Power Source Measure Unit for high-capacitance setups
- 4211-SMU - 4211-SMU/PA-R - Field Installable, High Power Source Measure Unit for high-capacitance setups with Preamplifier
- 4211-SMU - 4200-PA - Remote SMU Preamplifier Module (extends current measurement resolution to 10 aA)
- 4211-SMU - C/NEW DATA ISO - Include ISO-17025 calibration data
| Model | 4211-SMU |
|---|

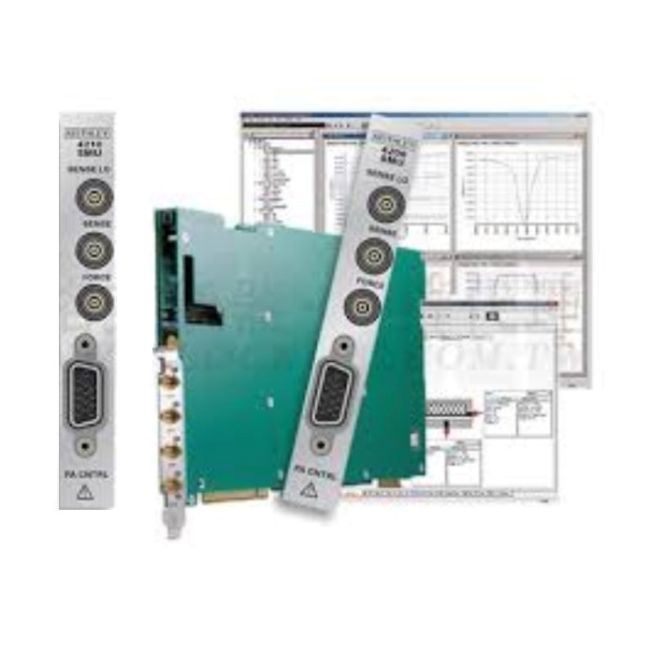

The Keithley 4211-SMU is a high power Source Measure Unit optimized for I-V characterization with ultra-sensitive current measurements while sweeping DC voltages. It supports load capacitance up to 100 µF, includes triaxial connections with active guarding, and offers 4-wire Kelvin connections for precise low current, high impedance analysis.
This SMU, used with the 4200A-SCS Parameter Analyzer and Clarius+ software, excels in test circuits with high capacitance, enhancing stability and measurement accuracy.
Testwall can supply the used Keithley 4211-SMU, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 4211-SMU.
