Keithley 7001
| Attribute | Value |
|---|---|
| Number of Slots | 2 |
| Maximum Switch Channels | Up to 80 channels (with two 40-channel cards) |
| Bus Interface | IEEE-488 (GPIB) |
| RS-232 Interface | Yes, RS-232 serial interface included |
| Trigger Link | 6-line trigger link for multi-instrument synchronization |
| Display | Vacuum fluorescent display showing channel status and system information |
| Compatible Card Types | Supports 700x series switch and control cards |
| Power Requirements | 105–125V or 210–250V AC, 50/60 Hz |
| Operating Temperature | 0°C to 50°C |
| Dimensions (H x W x D) | 89 mm x 213 mm x 370 mm (3.5 in x 8.375 in x 14.563 in) |
Keithley 7001 Options:
- 7001 - 7001-EW - 1 Year Warranty Extension
| Model | 7001 |
|---|

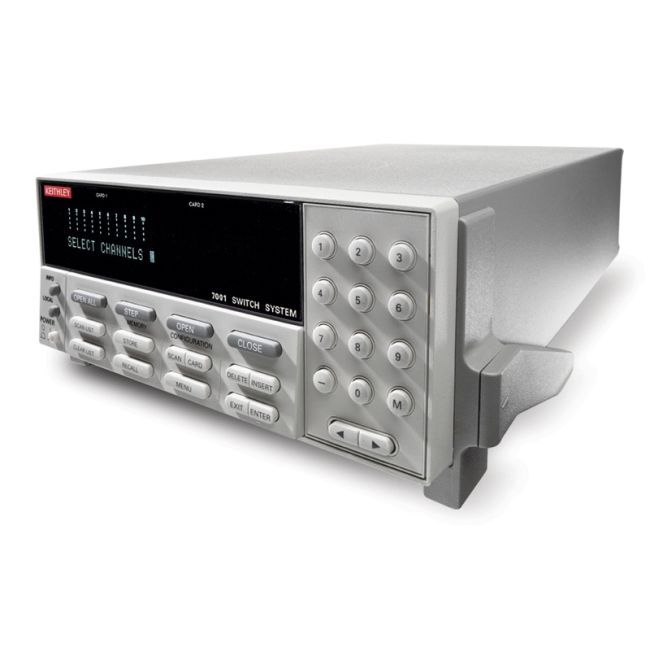

The Keithley 7001 Switch/Control Mainframe provides versatile switching for DC, RF, and optical signals, supporting the industry’s widest signal range. It includes 2 card slots and accommodates over 30 different switch/control cards, with GPIB/RS232 interfaces for integration. The unit offers full channel status display for real-time monitoring.
It integrates seamlessly with DMM and SourceMeter® instruments, making it ideal for complex signal routing and automated testing in laboratories and industrial applications.
Testwall can supply the used Keithley 7001, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 7001.
