Keithley 7701
| Attribute | Value |
|---|---|
| Number of Channels | 40 |
| Switch Type | Differential Multiplexer |
| Compatible Mainframe | Keithley 2700, 2701, 2750 |
| Voltage Measurement Range | Up to 300V RMS |
| Maximum Current | 300 mA |
| Relay Type | Reed Relays |
| Bandwidth | Up to 1 MHz |
| Temperature Measurement | Supported (Thermocouple, RTD, Thermistor) |
| Contact Configuration | 2-pole or 4-pole (selectable) |
| Operating Temperature Range | 0°C to 50°C |
Keithley 7701 Options:
- 7701 - 7701-3Y-EW - 1-year factory warranty extended to 3 years from date of shipment
| Model | 7701 |
|---|

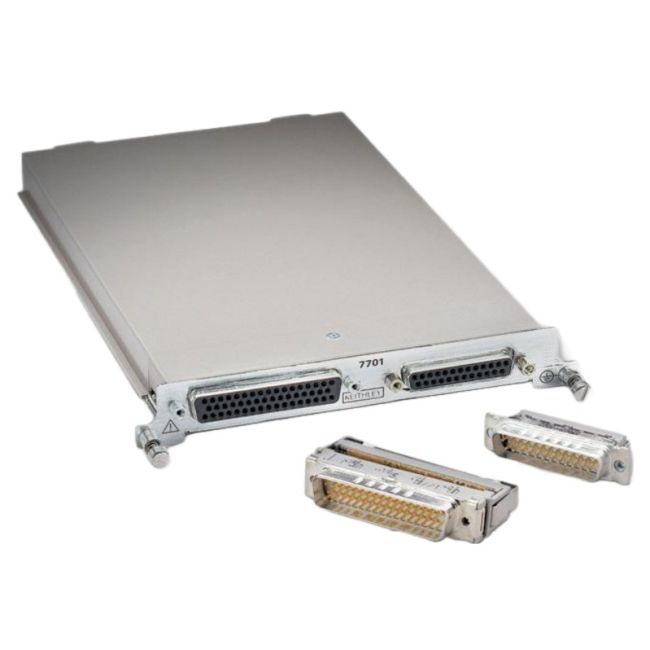

The Keithley 7701 Plug-in Module features 32 channels of 2-pole or 16 channels of 4-pole multiplexer switching, configurable for 4-wire ohms or dual independent multiplexer banks. It is designed for RTD or thermistor temperature applications and includes two female D-shell connectors for secure hook-up and teardown, supporting 150 V, 1 A with 60 W, 125 VA capacity and onboard memory-stored relay closures.
Ideal for precise differential measurements and flexible DMM connections via screw terminal jumpers, the 7701 is engineered for dependable performance in demanding test environments.
Testwall can supply the used Keithley 7701, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 7701.
