Keysight (Agilent) 16861A
| Attribute | Value |
|---|---|
| Number of Channels | 34 Channels |
| Maximum Sample Rate | 2 GSa/s |
| Maximum State Speed | 500 MHz |
| Timing Resolution | 500 ps |
| Memory Depth | 2 Mb per channel |
| Threshold Range | -6V to +6V |
| Minimum Detectable Pulse Width | 1.5 ns |
| Form Factor | USB Modular Logic Analyzer Module |
| Compatible Software | Keysight Logic Analyzer Application (PC-based) |
| Interface | USB 2.0 |
| Model | 16861A |
|---|

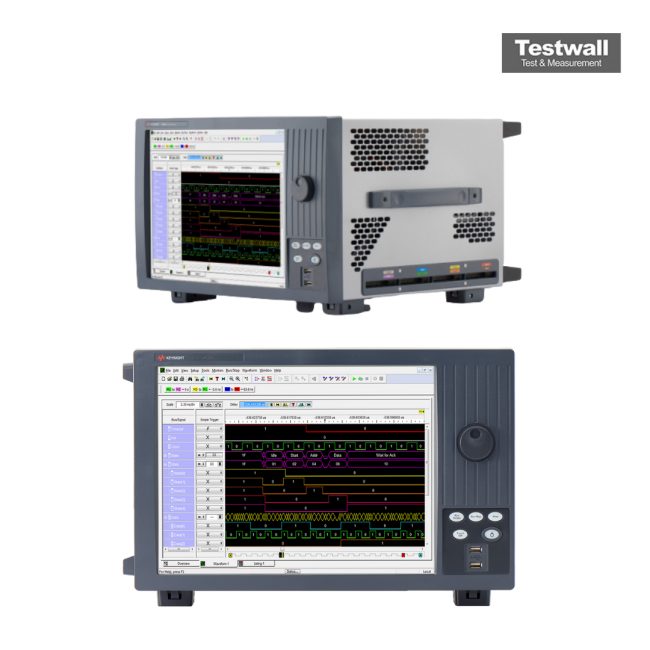

The Keysight (Agilent) 16861A is a 34-channel portable logic analyzer offering top-tier digital debug capabilities. It delivers 700 MHz max state speed, 1.4 Gb/s data rates, and 5 GHz timing (12.5 GHz with Timing Zoom). It includes 128 Mb max memory depth and features a 15-inch color touchscreen, built-in removable SSD, USB 3.0, and LAN connectivity.
Designed for high-speed synchronous and asynchronous signal analysis, it provides simultaneous eye diagrams, 80 ps resolution with Timing Zoom, and deep memory capture across all channels.
Testwall can supply the used Keysight (Agilent) 16861A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16861A.
