Tektronix

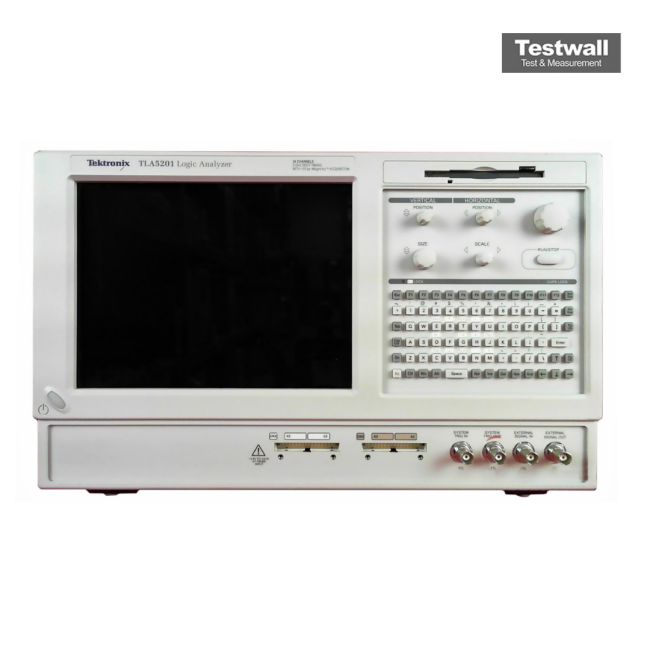

Tektronix TLA5201B
34 Ch 235MHz Logic Analyser
136 channels Number of Channels
2 GHz (500 ps timing resolution) Maximum Sample Rate
128 Mb per channel (with optional memory expansion) Memory Depth
-2.0 V to +4.0 V, adjustable in 50 mV increments Threshold Voltage Range
-2.0 V to +7.0 V maximum Input Voltage Range
| Attribute | Value |
|---|---|
| Number of Channels | 136 channels |
| Maximum Sample Rate | 2 GHz (500 ps timing resolution) |
| Memory Depth | 128 Mb per channel (with optional memory expansion) |
| Threshold Voltage Range | -2.0 V to +4.0 V, adjustable in 50 mV increments |
| Input Voltage Range | -2.0 V to +7.0 V maximum |
| Minimum Detectable Pulse Width | 500 ps |
| Logic Families Supported | TTL, CMOS, LVTTL, LVCMOS, ECL, LVECL, PECL, GTL, BTL, SSTL, HSTL |
| Form Factor | Standalone portable mainframe with integrated display |
| Operating System | Windows XP Embedded |
| Triggering | Advanced word recognizer, range recognizer, glitch, setup/hold violation triggering |
| Model | TLA5201B |
|---|
The Tektronix TLA5201B is a logic analyzer module offering 2 GHz timing capture, 34 channels (2 clock, 32 data) with 125 ps resolution, and 500 ps depth when used with the TLA700 mainframe.
It features 32 Mb memory depth for extended capture sessions and supports iView™ technology for synchronized analog-logic correlation, making it ideal for complex signal analysis.
Testwall can supply the used Tektronix TLA5201B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA5201B.
