Tektronix AFG3101C
| Attribute | Value |
|---|---|
| Frequency Range | 1 µHz to 100 MHz |
| Number of Channels | 1 Channel |
| Waveform Types | Sine, Square, Pulse, Ramp, Triangle, Noise, DC, Arbitrary (and 12 additional standard waveforms) |
| Amplitude Range | 1 mVpp to 10 Vpp (into 50 Ω) |
| Arbitrary Waveform Memory | 128K points per channel |
| Sample Rate | 250 MS/s |
| Vertical Resolution | 14-bit |
| Modulation Types | AM, FM, PM, FSK, PWM, Sweep, Burst |
| Output Impedance | 50 Ω |
| Connectivity/Interface | USB, GPIB, LAN (LXI Class C compliant) |
Tektronix AFG3101C Options:
- AFG3101C - A0 - North America power plug (115 V, 60 Hz)
- AFG3101C - A1 - Universal Euro power plug (220 V, 50 Hz)
- AFG3101C - A2 - United Kingdom power plug (240 V, 50 Hz)
- AFG3101C - A3 - Australia power plug (240 V, 50 Hz)
- AFG3101C - A5 - Switzerland power plug (220 V, 50 Hz)
- AFG3101C - A6 - Japan power plug (100 V, 50/60 Hz)
- AFG3101C - A10 - China power plug (50 Hz)
- AFG3101C - A11 - India power plug (50 Hz)
- AFG3101C - A12 - Brazil power plug (60 Hz)
- AFG3101C - A99 - No power cord
- AFG3101C - L0 - English manual (071-1631-xx)
- AFG3101C - L1 - French manual (071-1632-xx)
- AFG3101C - L2 - Italian manual (071-1669-xx)
- AFG3101C - L3 - German manual (071-1633-xx)
- AFG3101C - L4 - Spanish manual (071-1670-xx)
- AFG3101C - L5 - Japanese manual (071-1634-xx)
- AFG3101C - L6 - Portuguese manual (071-3042-xx)
- AFG3101C - L7 - Simple Chinese manual (071-1635-xx)
- AFG3101C - L8 - Traditional Chinese manual (071-1636-xx)
- AFG3101C - L9 - Korean manual (071-1637-xx)
- AFG3101C - L10 - Russian manual (071-1638-xx)
- AFG3101C - L99 - No manual
- AFG3101C - C3 - Calibration Service 3 Years
- AFG3101C - C5 - Calibration Service 5 Years
- AFG3101C - D1 - Calibration Data Report
- AFG3101C - D3 - Calibration Data Report 3 Years (with Opt. C3)
- AFG3101C - D5 - Calibration Data Report 5 Years (with Opt. C5)
- AFG3101C - R5 - Repair Service 5 Years (including warranty)
- AFG3101C - R5DW - Repair Service Coverage 5 Years (includes product warranty period; 5-year period starts at time of instrument purchase)
- AFG3101C - SILV400 - Standard warranty extended to 5 years
| Model | AFG3101C |
|---|

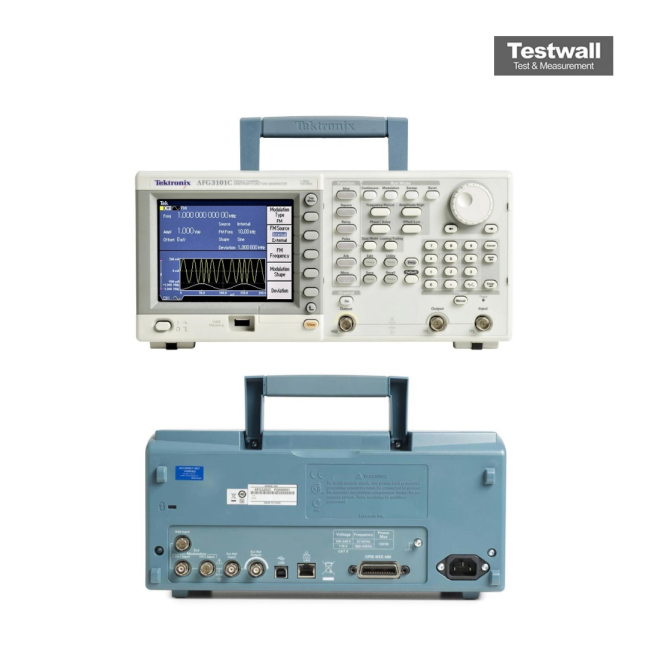

The Tektronix AFG3101C from the AFG3000C Series offers exceptional signal generation capabilities, delivering frequencies from 1 µHz to 100 MHz through a single-channel benchtop format. Designed for precision, it enables the creation of Function, Arbitrary Waveform, and Pulse signals with superior accuracy and reliability.
Its intuitive interface and versatile performance make it ideal for signal simulation, component testing, and research applications where controlled waveform generation is essential.
Testwall can supply the used Tektronix AFG3101C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG3101C.
