Keysight (Agilent) DSO81004B
4 Channel 40GSa/s 10.0 GHz Digital Oscilloscope
10 GHz Bandwidth
4 Number of Channels
40 GSa/s (interleaved), 20 GSa/s (per channel) Sample Rate
Up to 2 Gpts (with memory option) Memory Depth
8-bit (up to 12-bit with averaging) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 10 GHz |
| Number of Channels | 4 |
| Sample Rate | 40 GSa/s (interleaved), 20 GSa/s (per channel) |
| Memory Depth | Up to 2 Gpts (with memory option) |
| Vertical Resolution | 8-bit (up to 12-bit with averaging) |
| Input Impedance | 50 Ω |
| Rise Time | 43.75 ps |
| Display | 15-inch XGA color display |
| Operating System | Windows XP Professional |
| Connectivity | LAN, USB, GPIB |
Keysight Technologies DSO81004B Options:
- DSO81004B - 001 - 2-M (2 channels), 1-M (4 channels) memory upgrade; 64 M (2 channels at 4 GSa/s) or 32 M (4 channels ≤ 2 GSa/s)
- DSO81004B - 002 - EZJIT jitter analysis software (installed at the factory)
- DSO81004B - 003 - High-speed serial data analysis/mask testing with clock recovery and 8b/10b decoding (installed at the factory)
- DSO81004B - 004 - EZJIT Plus jitter analysis software (installed at the factory)
- DSO81004B - 005 - Noise reduction and bandwidth control option (installed at the factory)
- DSO81004B - 006 - My Infiniium integration package (installed at the factory)
- DSO81004B - 007 - Low-speed serial data analysis for I2C/SPI (installed at the factory)
- DSO81004B - 008 - Low-speed serial data analysis for CAN (installed at the factory)
- DSO81004B - 009 - InfiniiScan event identification software (installed at the factory)
- DSO81004B - 010 - Infiniium user defined function application software (installed at the factory)
- DSO81004B - 017 - ≥ 40 Gb removable hard disk drive; replaces internal hard disk with a removable hard disk
- DSO81004B - 1CM - Rack-mount kit (E2609B)
- DSO81004B - A6J - ANSI Z540-compliant calibration
| Model | DSO81004B |
|---|

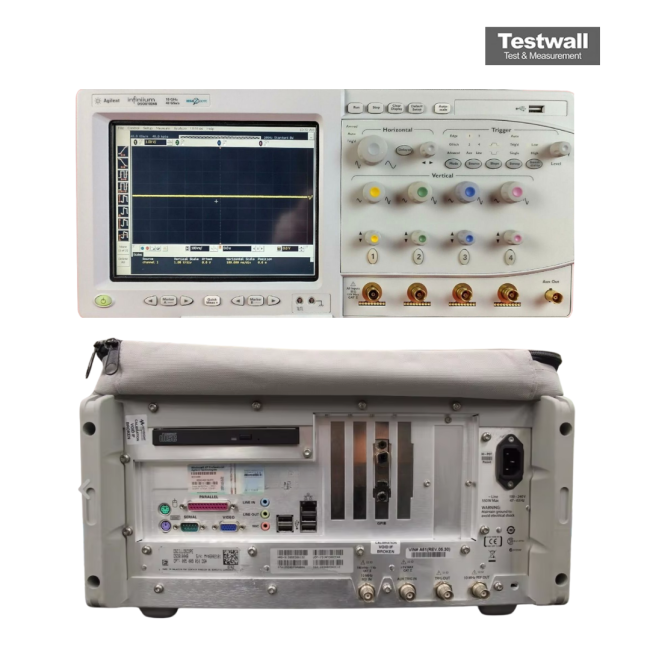

The Keysight (Agilent) DSO81004B is a high-performance 4-channel digital oscilloscope with a bandwidth of 10.0 GHz and an exceptional sampling rate of 40.0 GSa/s, delivering detailed signal fidelity for demanding electronic analysis.
This oscilloscope supports advanced waveform acquisition and precision signal visualization, ideal for high-speed digital design, validation, and analysis applications.
Testwall can supply the used Keysight (Agilent) DSO81004B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO81004B.
