Keysight (Agilent)

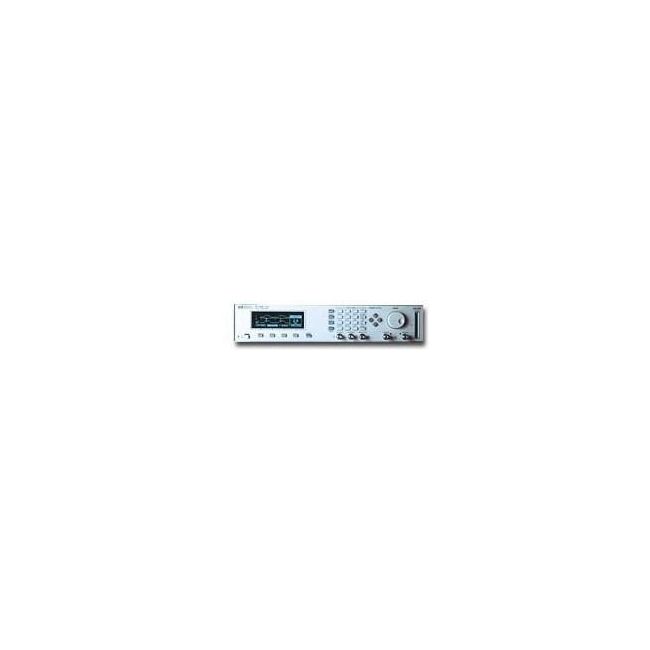

Keysight (Agilent) 8110A
Multichannel Pulse Pattern Generator
Up to 150 MHz Frequency Range
2 Channels Output Channels
2.5 ns (minimum) Rise/Fall Time
-4 V to +6 V into 50 Ω Output Voltage Range
3 ns to 999.9 ms Pulse Width Range
| Attribute | Value |
|---|---|
| Frequency Range | Up to 150 MHz |
| Output Channels | 2 Channels |
| Rise/Fall Time | 2.5 ns (minimum) |
| Output Voltage Range | -4 V to +6 V into 50 Ω |
| Pulse Width Range | 3 ns to 999.9 ms |
| Period Range | 6.67 ns to 999.9 ms |
| Delay Range | 0 to 999.9 ms |
| Output Impedance | 50 Ω |
| Timing Resolution | 1 ps |
| Interface | GPIB (IEEE-488) |
Keysight (Agilent) 8110A Options:
- 8110A - UN2 - Rear Panel Connectors
- 8110A - 1CP - Rack Mount and Handle Kit (5062-3975)
- 8110A - 1CN - Handle Kit (5062-3988)
- 8110A - 1CM - Rack Mount Kit (5062-3974)
- 8110A - 1CR - Rack Slide Kit (1494-0060)
- 8110A - UFJ - 1 MB SRAM Memory Card
- 8110A - ABD - German Localization (08110-91112)
- 8110A - ABF - French Localization (08110-91212)
- 8110A - ABZ - Italian Localization (08110-91312)
- 8110A - ABE - Spanish Localization (08110-91412)
- 8110A - ABJ - Japanese Localization (08110-91512)
- 8110A - AB0 - Chinese Localization (08110-91612)
- 8110A - 0B2 - Additional English Operating Manual (08110-91012)
- 8110A - 0BW - Service Manual (08110-91021)
- 8110A - 1BP - MIL Std. 45662A Calibration with Test Data
- 8110A - W32 - 3 Year Customer Return Calibration Coverage
- 8110A - W34 - 3 Year MIL Calibration Service
- 8110A - W50 - 5 Year Customer Return Repair Coverage
- 8110A - W52 - 5 Year Customer Return Calibration Coverage
- 8110A - W54 - 5 Year MIL Calibration Service
| Model | 8110A |
|---|
The Keysight (Agilent) 8110A Pulse Generator features a frequency range from DC to 150 MHz, offering adjustable pulse widths from 3 ns to 3 s and rise/fall times from 800 ps to 100 ns. It supports amplitudes up to 10 Vpp and provides dual-channel operation with GPIB programmability.
Ideal for digital and RF testing, the 8110A is perfect for simulating clocks, triggers, and timing signals in complex environments.
Testwall can supply the used Keysight (Agilent) 8110A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8110A.
