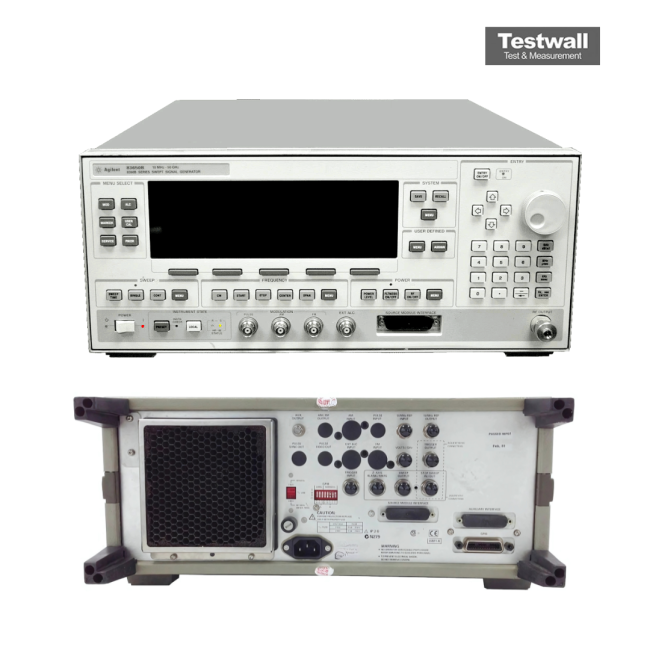

Keysight (Agilent) 83650B
Synthesized Signal Generator, 10 MHz - 50 GHz
10 MHz to 50 GHz Frequency Range
1 kHz Frequency Resolution
GPIB Interfaces
425 × 178 × 648 mm Dimensions
27 kg Weight
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 50 GHz |
| Frequency Resolution | 1 kHz |
| Interfaces | GPIB |
| Dimensions | 425 × 178 × 648 mm |
| Weight | 27 kg |
| Output Power | -20 dBm to +10 dBm (+5 dBm to 40 GHz, +2.5 dBm to 50 GHz) |
| SSB Phase Noise | -80 dBc/Hz at 10 GHz, 10 kHz offset |
| Modulation | AM, FM, pulse |
| Level Accuracy | ±0.7 dB at 2 to 20 GHz, > -10 dBm (spec.) |
| Non-Harmonics | -60 dBc to 20 GHz, -54 dBc to 40 GHz, -52 dBc to 50 GHz |
| Switching Speed | 15 ms + 5 ms per GHz step (max.) |
| Modulation Bandwidth | AM DC to 100 kHz; FM up to 8 MHz rate, ±8 MHz locked, ±75 MHz unlocked |
| Sweep Modes | step sweep, list mode, ramp sweep, power sweep (801 points) |
| Timebase Aging | 10 MHz, 5 × 10⁻¹⁰ per day, 1 × 10⁻⁷ per year |
| RF Output Connector | 2.4 mm male front panel |
Keysight (Agilent) 83650B Options:
- 83650B - 001 - Adds step attenuator (minimum settable output power –110 dBm; maximum leveled output power reduced by 1.5 dB to 20 GHz, 2 dB above 20 GHz, and 2.5 dB above 40 GHz)
- 83650B - 002 - Adds internal modulation generator (digitally synthesized modulation waveform source; 8360B only, not available on 8360L)
- 83650B - 004 - Rear panel RF output (moves RF output, external ALC input, pulse input/output, AM input, and FM input connectors to the rear panel)
- 83650B - 006 - Fast pulse modulation (improves pulse rise/fall time to 10 ns; also improves harmonic performance; 8360B only, not available on 8360L)
- 83650B - 008 - 1 Hz frequency resolution
- 83650B - 700 - MATE system compatibility (provides CIIL programming commands)
- 83650B - 806 - Rack slide kit (rack mount while permitting access to internal spaces)
- 83650B - 908 - Rack flange kit (rack mount without front handles)
- 83650B - 910 - Extra operating and service manuals (provides a second copy)
- 83650B - 913 - Rack flange kit (rack mount with front handles)
- 83650B - H31 - Special option: limits frequency output to 31 GHz
The Keysight (Agilent) 83650B is a sweeping signal generator offering a frequency range from 10 kHz to 50 GHz. It combines synthesized signal accuracy with the speed and flexibility of analog sweeps, ideal for demanding RF and microwave test environments.
It features a broad frequency span, superior signal integrity, and comprehensive calibration and technical support options, tailored for high-performance lab-grade testing applications.
Testwall can supply the used Keysight (Agilent) 83650B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83650B.
Options and configurations
- Frequency Resolution: 1 kHz (1 Hz with Opt. 008)
- Output Power: -20 dBm (-110 dBm with Opt. 001) to +10 dBm (+5 dBm to 40 GHz, +2.5 dBm to 50 GHz)
- Modulation: AM, FM, pulse (on/off 80 dB, 25 ns rise/fall; 10 ns with Opt. 006)
- RF Output Connector: 2.4 mm male front panel (rear panel with Opt. 004)
