Keysight (Agilent)

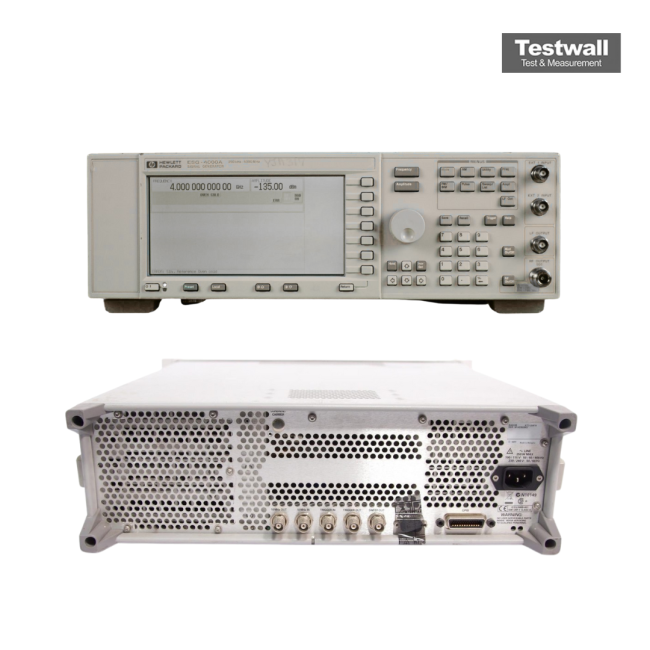

Keysight (Agilent) E4422A
4GHz Signal Generator
250 kHz to 4 GHz Frequency Range
+25 dBm Maximum Output Power
±0.5 dB (typical) Power Level Accuracy
0.001 Hz Frequency Resolution
-114 dBc/Hz at 20 kHz offset (1 GHz carrier) Phase Noise
| Attribute | Value |
|---|---|
| Frequency Range | 250 kHz to 4 GHz |
| Maximum Output Power | +25 dBm |
| Power Level Accuracy | ±0.5 dB (typical) |
| Frequency Resolution | 0.001 Hz |
| Phase Noise | -114 dBc/Hz at 20 kHz offset (1 GHz carrier) |
| Modulation Types | AM, FM, Phase Modulation, Pulse Modulation |
| Output Impedance | 50 Ohms |
| Harmonic Spurious | -30 dBc (below +13 dBm output) |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Interface/Connectivity | GPIB, RS-232 |
Keysight (Agilent) E4422A 4GHz Signal Generator Options:
- E4422A - 1E5 - High Stab Timebase
- E4422A - 1EM - Rear Panel Connectors
| Model | E4422A |
|---|
The Keysight (Agilent) E4422A is a 4GHz analog RF signal generator offering precise frequency and amplitude control, broad modulation capabilities, and excellent in-channel performance, making it ideal for receiver and component testing.
Its flexible ESG Series architecture supports evolving testing needs, upgrade paths for current and future options, and ensures cost-effective operation with high reliability and a two-year calibration cycle.
Testwall can supply the used Keysight (Agilent) E4422A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E4422A.
