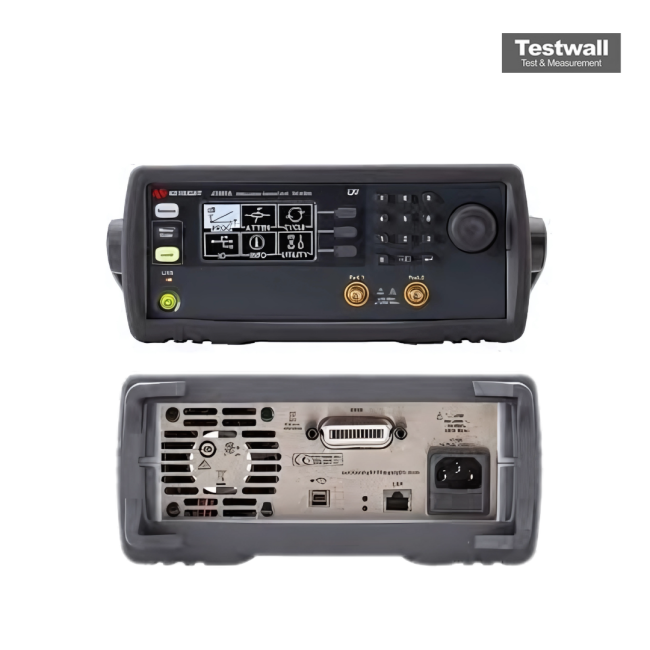

Keysight (Agilent) J7201A
Attenuation Control Unit
0 to 110 dB Attenuation Range
DC to 4 GHz Frequency Range
1 dB Attenuation Step Size
Less than 10 ms Switching Speed
50 Ohm Impedance
| Attribute | Value |
|---|---|
| Attenuation Range | 0 to 110 dB |
| Frequency Range | DC to 4 GHz |
| Attenuation Step Size | 1 dB |
| Switching Speed | Less than 10 ms |
| Impedance | 50 Ohm |
| Connector Type | Type-N (female) |
| Maximum Input Power | 1 W (30 dBm) |
| Control Interface | GPIB (IEEE 488) |
| Power Supply | 100/120/220/240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 55°C |
| Model | J7201A |
|---|
The Keysight (Agilent) J7201A Attenuation Control Unit operates over a DC to 6GHz range with 0 to 121dB attenuation in precise 1dB steps, ensuring minimal insertion loss of 2.5dB and excellent return loss at 14dB (VSWR 1.50). It includes SMA/Type-N female connectors.
Ideal for RF applications requiring precise signal attenuation, the J7201A offers accurate step control, broad frequency coverage, and reliable SMA/Type-N connectivity.
Testwall can supply the used Keysight (Agilent) J7201A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) J7201A.
