Keysight (Agilent) 11713E
| Attribute | Value |
|---|---|
| Frequency Range | DC to 26.5 GHz |
| Number of Switch Channels | 2 independent SPDT switch drivers |
| Control Voltage Output | 0 V to +15 V (positive logic) and 0 V to -15 V (negative logic) |
| Maximum Current Output | 100 mA per channel |
| Interface | USB, LAN (LXI), and GPIB |
| LXI Compliance | LXI Class C compliant |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 55°C |
| Dimensions (W x H x D) | 212.6 mm x 88.5 mm x 348.3 mm (2U half-rack) |
| Weight | Approximately 3.2 kg (7 lbs) |
| Model | 11713E |
|---|

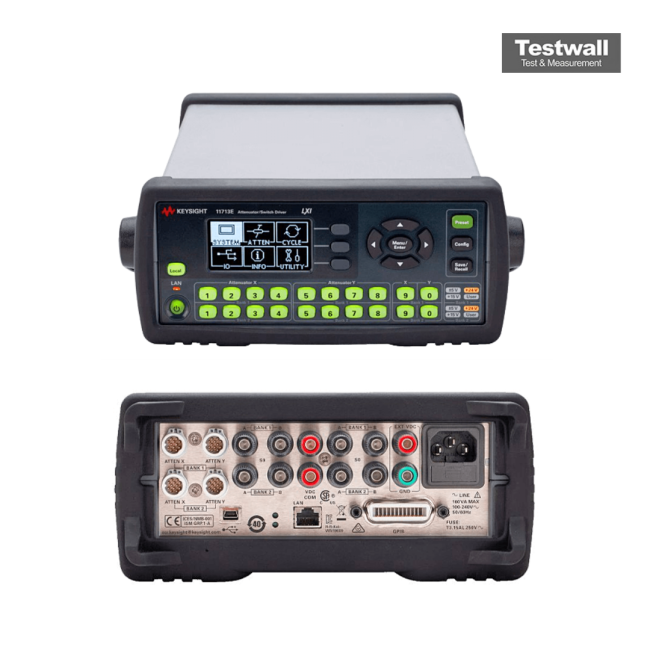

The Keysight (Agilent) 11713E Attenuator/Switch Driver manages up to 20 SPDT switches and 4 programmable attenuators. It supports both electro-mechanical and solid-state switches, offering USB, LAN, and GPIB interfaces, with integrated 5V/15V/24V PSU at 3.4A. The front panel includes push-buttons and an LCD for intuitive control.
This unit is ideal for benchtop and ATE environments, enabling remote operation via a graphical web interface and full 11713B backward compatibility. It supports SCPI commands, continuous/pulse drive, and switch life monitoring.
Testwall can supply the used Keysight (Agilent) 11713E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 11713E.
