Keysight (Agilent) N1045B
60 GHz 2 or 4-Port Electrical Remote Sampling Head
Up to 50 GHz (electrical), supports 4-port configuration Bandwidth
4 ports (dual 2-port or single 4-port TDR/TDT configuration) Number of Ports
Less than 9 ps (10%-90%), enabling high-speed signal analysis Rise Time
Adjustable step amplitude for flexible signal testing Step Size
Compatible with Keysight 86100D Infiniium DCA-X Wide-Bandwidth Oscilloscope Connectivity Interface
| Attribute | Value |
|---|---|
| Bandwidth | Up to 50 GHz (electrical), supports 4-port configuration |
| Number of Ports | 4 ports (dual 2-port or single 4-port TDR/TDT configuration) |
| Rise Time | Less than 9 ps (10%-90%), enabling high-speed signal analysis |
| Step Size | Adjustable step amplitude for flexible signal testing |
| Connectivity Interface | Compatible with Keysight 86100D Infiniium DCA-X Wide-Bandwidth Oscilloscope |
| Measurement Capability | TDR (Time Domain Reflectometry) and TDT (Time Domain Transmission) measurements |
| Connector Type | 2.92 mm (K-connector), compatible with 3.5 mm and SMA connectors |
| Operating Frequency Range | DC to 50 GHz |
| Application | Impedance characterization, S-parameter extraction, and differential pair analysis |
| Compliance Standards | Supports PCIe, USB, DDR, and other high-speed digital interface standards testing |
Keysight (Agilent) N1045B Options:
- N1045B - 02F - 2 channel remote head, 1.85mm, female inputs
- N1045B - 02M - 2 channel remote head, 1.85mm, male inputs
- N1045B - 04F - 4 channel remote head, 1.85mm, female inputs
- N1045B - 04M - 4 channel remote head, 1.85mm, male inputs
- N1045B - C0C - Certificate of calibration
- N1045B - UK6 - Commercial calibration certificate with test data
- N1027A - 45A - Accessory kit for two N1045A/N1045B channels
| Model | N1045B |
|---|
Keysight (Agilent) N1060A Precision Waveform Analyzer

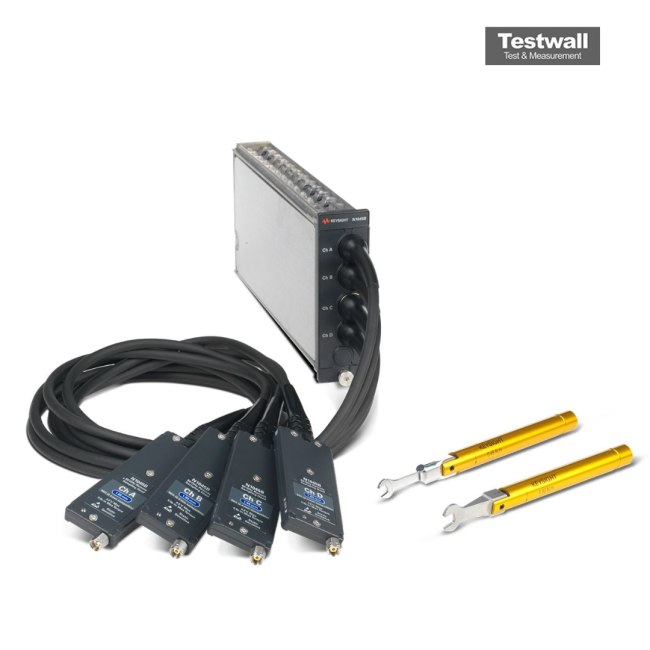

The N1045B 60 GHz remote sampling head module is engineered to provide superior measurement accuracy with the highest throughput for testing multi-lane electrical designs. The remote head design allows the high-bandwidth sampler to be located very near the device under test which minimizes loss due to cabling.
€¢ 60 GHz bandwidth (65 GHz typical)
€¢ Independent skew control on each sampler
€¢ 2 to 16 electrical channels per mainframe
€¢ Simultaneous data acquisition on all channels
€¢ Maximum sampling rate:
€¢ In 86100D mainframe: 40 kSa/s
€¢ In N1000A mainframe: 250 kSa/s
Specifications for the Keysight (Agilent) N1060A Precision Waveform Analyzer Include:
| Bandwidth | 60 GHz (65 GHz typ.) |
| Channels per Module | 2 or 4 (selectable) |
| Min SIRC Freq | 10 GHz |
| Max SIRC Freq | 70 GHz |
