Keysight (Agilent)

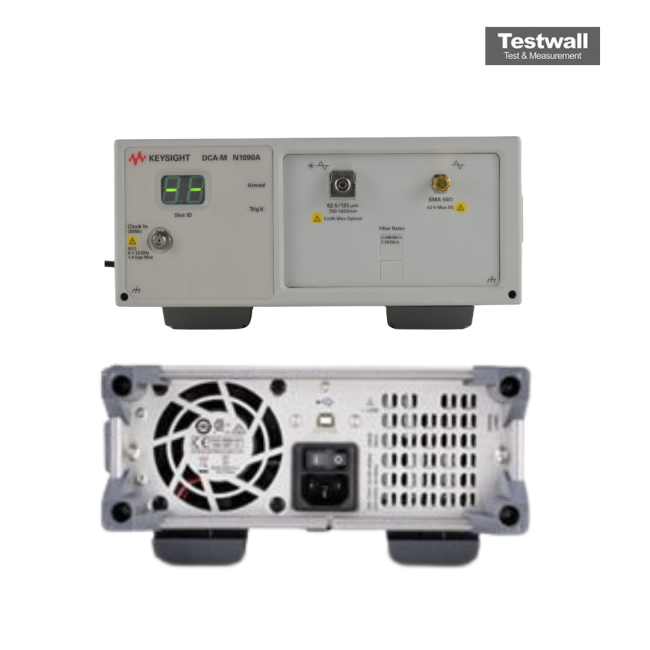

Keysight (Agilent) N1090A
1.25Gb/s - 11.3Gb/s Single Optical Channel Module
1 Number of Ports
1260 nm to 1640 nm Wavelength Range
> 40 dB Optical Return Loss
+10 dBm Maximum Input Power
FC/PC (interchangeable adapters available) Connector Type
| Attribute | Value |
|---|---|
| Number of Ports | 1 |
| Wavelength Range | 1260 nm to 1640 nm |
| Optical Return Loss | > 40 dB |
| Maximum Input Power | +10 dBm |
| Connector Type | FC/PC (interchangeable adapters available) |
| Dynamic Range | Up to 45 dB |
| Pulse Width Range | 3 ns to 20 µs |
| Distance Range | Up to 260 km |
| Dead Zone (Event) | ≤ 1 m |
| Instrument Type | Optical Time Domain Reflectometer (OTDR) Module |
| Model | N1090A |
|---|
Keysight (Agilent) N1090A 1.25Gb/s - 11.3Gb/s Single Optical Channel Module Description: High sensitivity optical channel with noise <1 uW USB interface (for connection to DCA-X mainframe or PC) Standard data rates from 1.244 to 11.3 Gb/s Very low noise and jitter Small form factor Keysight (Agilent) N1090A 1.25Gb/s - 11.3Gb/s Single Optical Channel Module
