Keysight (Agilent) N1094A
30/50 GHz Dual Electrical Channel Module for DCA-X Mainframe
DCA-M Sampling Oscilloscope Module Instrument Type
Up to 80 GHz electrical bandwidth Bandwidth
2 electrical input channels Number of Channels
200 fs/div to 1 ms/div Timebase Range
16-bit ADC resolution Vertical Resolution
| Attribute | Value |
|---|---|
| Instrument Type | DCA-M Sampling Oscilloscope Module |
| Bandwidth | Up to 80 GHz electrical bandwidth |
| Number of Channels | 2 electrical input channels |
| Timebase Range | 200 fs/div to 1 ms/div |
| Vertical Resolution | 16-bit ADC resolution |
| Input Connector Type | 2.4 mm coaxial connectors |
| Maximum Input Voltage | ±2 V peak (DC + AC peak) |
| Trigger Input | External trigger input, 50 Ω impedance |
| Interface/Connectivity | Compatible with Keysight 86100D DCA-X mainframe via module slot |
| Primary Application | High-speed digital signal analysis, eye diagram measurements, and optical/electrical waveform characterization up to 80 GHz |
| Model | N1094A |
|---|

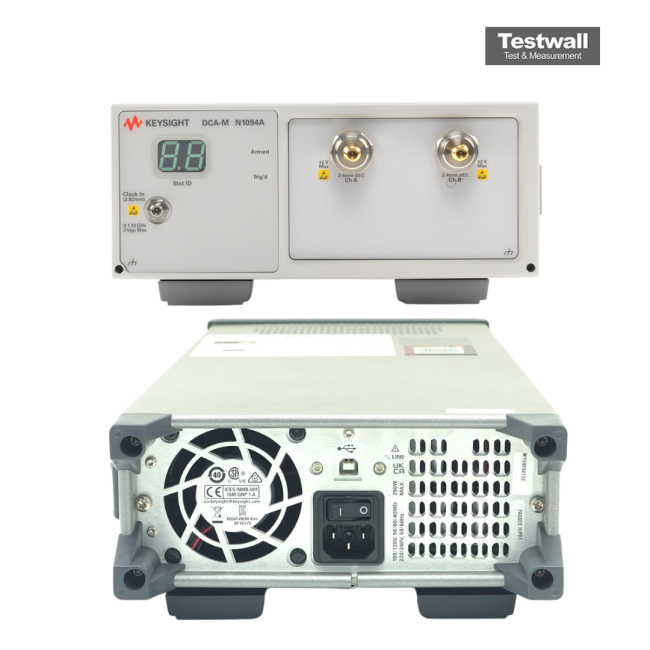

Keysight (Agilent) N1094A 30/50 GHz Dual Electrical Channel Module for DCA-X Mainframe Description: 20/33/40/50 GHz bandwidth (20/30 GHz optional) Accurate high data rate analysis with <170 fs jitter 2.4 mm input type compact design USB interface (for connection to DCA-X mainframe or PC Keysight (Agilent) N1094A 30/50 GHz Dual Electrical Channel Module for DCA-X Mainframe
