Keysight (Agilent)

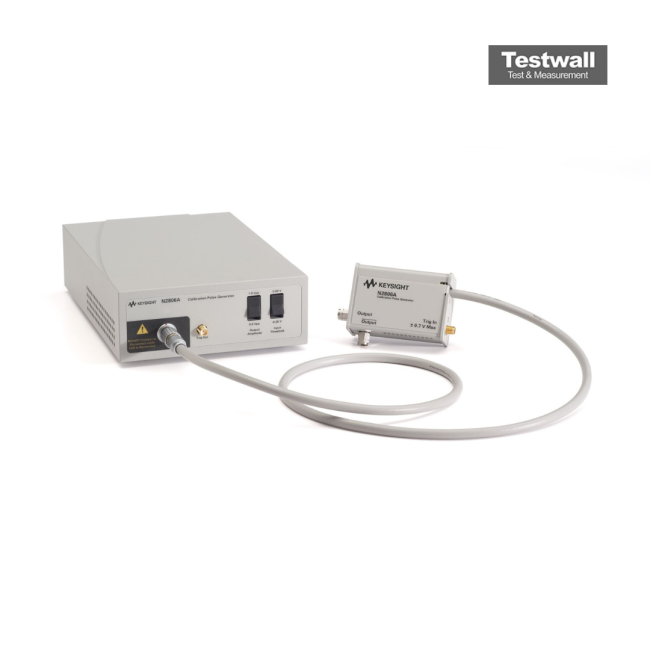

Keysight (Agilent) N2806A
Calibration Pulse Generator
2 outputs (diff.) Channels
up to 45 GHz (square) Repetition Rate
500 mV or 1 V (0 V high level) Amplitude
50 Ω Output Impedance
1.45 kg Weight
| Attribute | Value |
|---|---|
| Channels | 2 outputs (diff.) |
| Repetition Rate | up to 45 GHz (square) |
| Amplitude | 500 mV or 1 V (0 V high level) |
| Output Impedance | 50 Ω |
| Weight | 1.45 kg |
| Transition Times | < 10 ps rise, < 8 ps fall at 500 mV (spec.) |
Keysight (Agilent) N2806A Calibration Pulse Generator Description: Square wave outputs with sub-9 ps edge speeds up to 45 GHz Sub-7 ps falling edge Sub-9 ps rising edge Two differential RF outputs Keysight (Agilent) N2806A Calibration Pulse Generator
