Keysight (Agilent) N4691B 26 GHZ ECAL MODULE AND TOOLS
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 26.5 GHz |
| Connector Type | 3.5 mm (male and female) |
| Number of Ports | 2-port ECal module |
| Calibration Method | Electronic Calibration (ECal) |
| Interface | USB (Universal Serial Bus) |
| Insertion Loss | Less than 6 dB typical |
| Return Loss | Greater than 14 dB typical |
| Impedance | 50 Ohm |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Compatible Instruments | Keysight PNA, PNA-L, PNA-X, ENA, and other USB-compatible Vector Network Analyzers (VNAs) |
Keysight Technologies N4691B 26 GHZ ECAL MODULE AND TOOLS Options:
- N4691B - 00F - Replace f-m connectors on ECal module(s) with f-f connectors
- N4691B - 00M - Replace f-m connectors on ECal module(s) with m-m connectors
- N4691B - 00A - Adds male-to-male and female-to-female adapters (also adds a 5/16" 90 N-cm (8 in-lb) torque wrench to 3.5 mm modules)
- N4691B - 1A7 - ISO 17025 compliant calibration
- N4691B - A6J - ANSI Z540 compliant calibration
- N4691B - UK6 - Commercial calibration certificate with measured data
- N4691B - M0F - f-m connectors on ECal module(s)
| Model | N4691B |
|---|

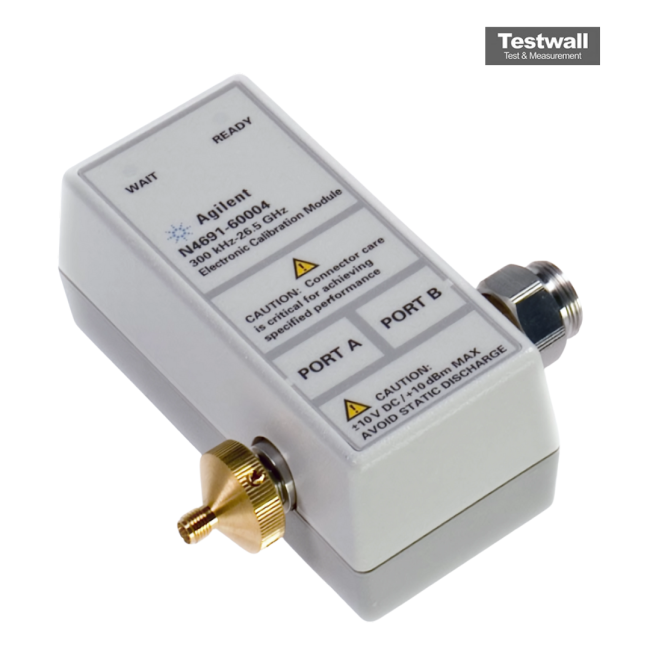

The Keysight (Agilent) N4691B electronic calibration (ECal) module makes the calibration of vector network analyzers fast, easy and accurate. The N4691B ECal module is now easily controlled by one of two methods depending on the network analyzer. The Keysight (Agilent) PNA and ENA series of network analyzers controls the module directly via the USB interface. The N4691B modules can also be controlled via an 85097B interface kit when used with a Keysight (Agilent) 8753E/ES/ET or 8720D/ES/ET. (This requires a special parallel cable and firmware Rev. 7.74).
Traditional mechanical calibrations require intensive operator interaction, which is prone to errors. With the N4691B electronic calibration module, the operator simply connects the N4691B module to the network analyzer and the software controls the rest.
Keysight N4691B ECal Module - Features and Specifications:
- 300 kHz to 26.5 GHz frequency range
- USB interface for direct control with PNA and ENA series of analyzers
- Fast calibration (less than half the time compared to mechanical calibration kits)
- Full two-port calibration with a single connection
- Reduced connector wear
- NIST traceable accurate calibrations
- Reliable solid-state switching
The Keysight N4691B Electronic Calibration (ECal) module comes with technical support and is available refurbished with warranty at Testwall.
