Keysight (Agilent)
Keysight (Agilent) N7550A
Electronic Calibration Module (ECal), DC-4 GHz, 2-Port
N7550A Signal Analyzer Software Product Family
89600 VSA (Vector Signal Analysis) Software Software Type
Compatible with Keysight signal analyzers, oscilloscopes, and logic analyzers Supported Hardware
Advanced vector signal analysis including modulation quality, spectrum, and time domain measurements Measurement Capability
Supports a wide range of digital and analog demodulation formats including QAM, PSK, FSK, OFDM, and more Demodulation Standards
| Attribute | Value |
|---|---|
| Product Family | N7550A Signal Analyzer Software |
| Software Type | 89600 VSA (Vector Signal Analysis) Software |
| Supported Hardware | Compatible with Keysight signal analyzers, oscilloscopes, and logic analyzers |
| Measurement Capability | Advanced vector signal analysis including modulation quality, spectrum, and time domain measurements |
| Demodulation Standards | Supports a wide range of digital and analog demodulation formats including QAM, PSK, FSK, OFDM, and more |
| Analysis Bandwidth | Dependent on connected hardware; supports up to multi-GHz analysis bandwidth with compatible instruments |
| Operating System | Microsoft Windows compatible |
| License Type | Node-locked or transportable software license |
| Interface | Supports LAN, USB, and GPIB connectivity to hardware instruments |
| Application Areas | Wireless communications, aerospace and defense, R&D signal characterization, and manufacturing test |
Keysight (Agilent) N7550A Options:
- N7550A - 3FF - Both 3.5 mm connectors are female on module
- N7550A - 3MF - 1 female and 1 male connector on module, both 3.5 mm
- N7550A - 3MM - Both 3.5 mm connectors are male on module
- N7550A - NFF - Both Type-N, 50 Ω connectors are female on module
- N7550A - NMF - 1 female and 1 male connector on module, both Type-N, 50 Ω
- N7550A - NMM - Both Type-N, 50 Ω connectors are male on module
- N7550A - 150 - Plastic storage box
- N7550X-151 - 3.5 or 2.92 mm torque wrench
- N7550X-152 - Type-N torque wrench
| Model | N7550A |
|---|

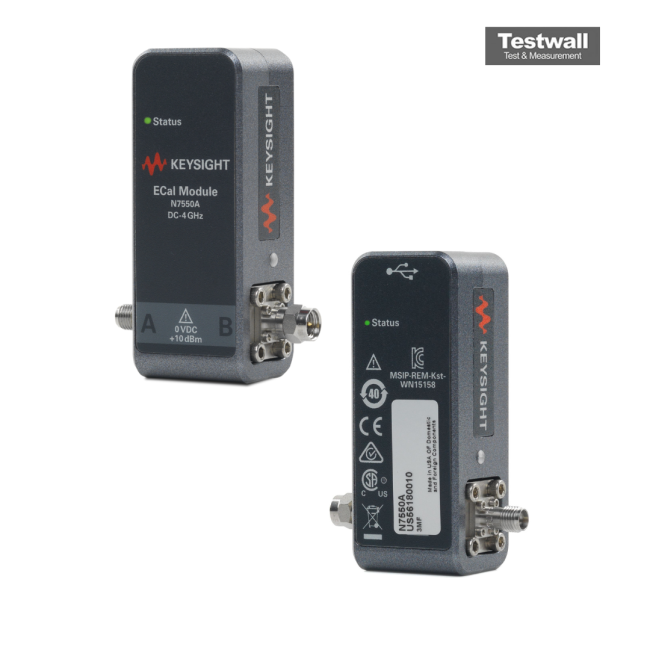

Keysight (Agilent) N7550A Electronic Calibration Module
The N7550A is part of Keysight's family of value-line electronic calibration (ECal) modules that makes calibration of vector network analyzers fast, easy and accurate. Cut your calibration down to half the time it normally takes using a traditional mechanical cal kit. Simply connect it to your instrument and the firmware does the rest. The N7550A supports Keysight's , PNA-X, PNA, ENA, and PXI vector network analyzers and FieldFox handheld analyzers. The N7550A is a 2-port ECal module that supports 3.5 mm connectors or Type N connectors.
Specifications for the Keysight (Agilent) N7550A Electronic Calibration Module Include:
| Frequency | DC to 4 GHz |
| Number of Ports | 2 Port, 50Ω |
| Connector Type | 3.5mm or Type N |
