Keysight (Agilent) N7554A
| Attribute | Value |
|---|---|
| Frequency Range | 100 MHz to 20 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 123 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Measurement Speed | Up to 42 µs per point |
| Trace Noise | 0.004 dB RMS |
| Connector Type | 3.5 mm (f) |
| Display | 10.4-inch XGA color LCD touchscreen |
| Interface | LAN (LXI), USB, GPIB |
| Form Factor | Benchtop Vector Network Analyzer (VNA) |
Keysight (Agilent) N7554A Options:
- N7554A - 3FF - Both 3.5 mm connectors are female on module
- N7554A - 3MF - 1 female and 1 male connector on module, both 3.5 mm
- N7554A - 3MM - Both 3.5 mm connectors are male on module
- N7554A - NFF - Both Type-N, 50 Ω connectors are female on module
- N7554A - NMF - 1 female and 1 male connector on module, both Type-N, 50 Ω
- N7554A - NMM - Both Type-N, 50 Ω connectors are male on module
- N7554A - 150 - Plastic storage box
- N7550X-151 - 3.5 or 2.92 mm torque wrench
- N7550X-152 - Type-N torque wrench
| Model | N7554A |
|---|

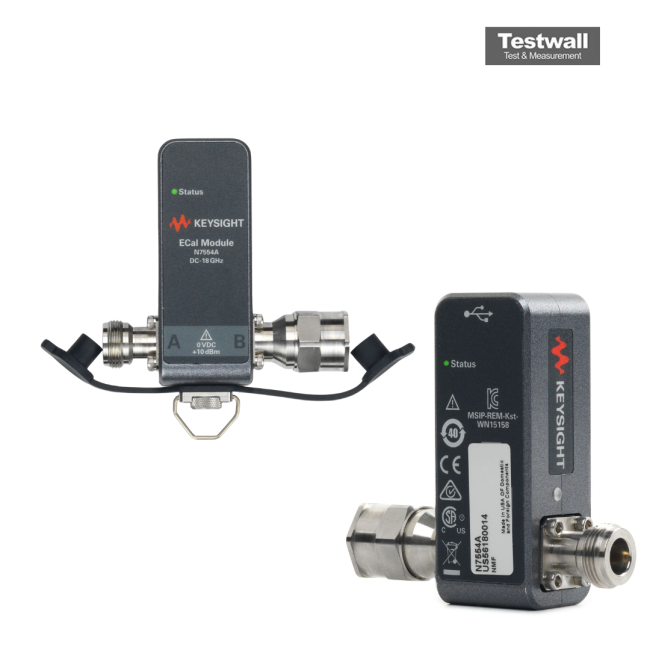

Keysight (Agilent) N7554A Electronic Calibration Module
The N7554A is part of Keysight's family of value-line electronic calibration (ECal) modules that makes calibration of vector network analyzers fast, easy and accurate. Cut your calibration down to half the time it normally takes using a traditional mechanical cal kit. Simply connect it to your instrument and the firmware does the rest. The N7554A supports Keysight's , PNA-X, PNA, ENA, and PXI vector network analyzers and FieldFox handheld analyzers. The N7554A is a 2-port ECal module that supports 3.5 mm connectors or Type N connectors. The firmware installed on the instrument is used to control the calibration module, making it a fully integrated solution. The calibration code on the instrument communicates via a USB 2.0 micro-interface and simplifies the calibration to a single connection for a full two-port calibrated measurement.
Specifications for the Keysight (Agilent) N7554A Electronic Calibration Module Include:
| Frequency Range | DC to 18 GHz |
| Ports | 2 |
| Connector Types | Type N or 3.5mm |
