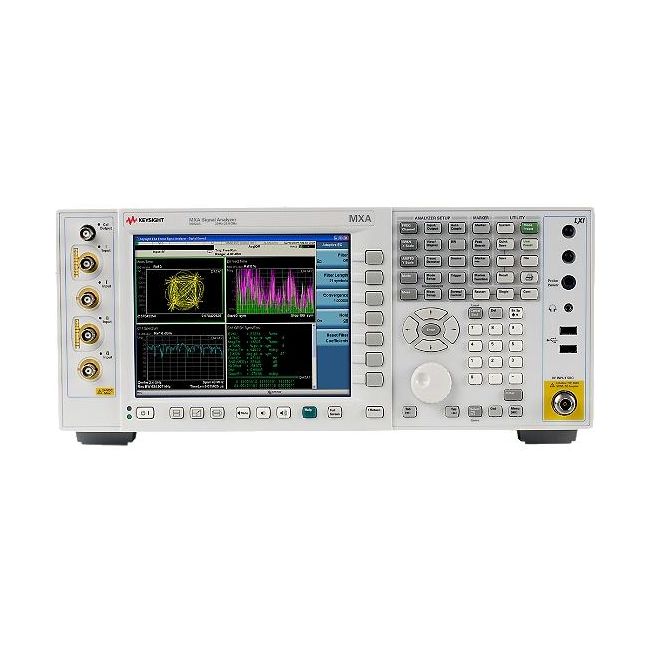

Keysight (Agilent) N9020A-526 10 Hz to 26.5 GHz Spectrum Analyser (Signal Analyser)
10 Hz to 26.5 GHz Spectrum Analyser (Signal Analyser)
10 Hz to 26.5 GHz Frequency Range
-163 dBm/Hz (with preamplifier enabled) Displayed Average Noise Level (DANL)
-130 dBc/Hz at 1 GHz carrier, 10 kHz offset Phase Noise
1 Hz to 8 MHz (in 10% steps), plus 200 Hz, 1 kHz, 5 kHz, and 1, 3 MHz Resolution Bandwidth (RBW)
+15 dBm (nominal) at 1 GHz Third-Order Intercept (TOI)
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 26.5 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (with preamplifier enabled) |
| Phase Noise | -130 dBc/Hz at 1 GHz carrier, 10 kHz offset |
| Resolution Bandwidth (RBW) | 1 Hz to 8 MHz (in 10% steps), plus 200 Hz, 1 kHz, 5 kHz, and 1, 3 MHz |
| Third-Order Intercept (TOI) | +15 dBm (nominal) at 1 GHz |
| Maximum Input Power | +30 dBm (1 W) DC to 3 GHz |
| Amplitude Accuracy | ±0.19 dB total amplitude accuracy at 1 GHz |
| Analysis Bandwidth | Up to 25 MHz standard (upgradeable to 160 MHz) |
| Input Impedance | 50 Ohms |
| Display | 10.4-inch XGA color LCD touchscreen display |
Keysight (Agilent) N9020A-526 10 Hz to 26.5 GHz Spectrum Analyser (Signal Analyser) Options:
- N9020A-526 - 503 - Frequency range 10 Hz to 3.6 GHz
- N9020A-526 - 508 - Frequency range 10 Hz to 8.4 GHz
- N9020A-526 - 513 - Frequency range 10 Hz to 13.6 GHz
- N9020A-526 - 526 - Frequency range 10 Hz to 26.5 GHz
- N9020A-526 - PFR - Precision Frequency Reference
- N9020A-526 - EA3 - Electronic Attenuator (10 Hz to 3.6 GHz, 0 to 24 dB, 1 dB steps)
- N9020A-526 - P03 - Preamplifier, 100 kHz to 3.6 GHz
- N9020A-526 - P08 - Preamplifier, 100 kHz to 8.4 GHz
- N9020A-526 - P13 - Preamplifier, 100 kHz to 13.6 GHz
- N9020A-526 - P26 - Preamplifier, 100 kHz to 26.5 GHz
- N9020A-526 - B25 - 25 MHz Analysis Bandwidth (standard)
- N9020A-526 - B40 - 40 MHz Analysis Bandwidth
- N9020A-526 - B85 - 85 MHz Analysis Bandwidth
- N9020A-526 - B1A - 125 MHz Analysis Bandwidth
- N9020A-526 - B1X - 160 MHz Analysis Bandwidth
- N9020A-526 - BBA - Analog Baseband IQ Inputs
- N9020A-526 - EXM - External Mixing
- N9020A-526 - EMC - EMC Bandwidths (CISPR and MIL STD 461E compliant)
- N9020A-526 - NFE - Noise Floor Extension (installed as N9020A-NF2)
- N9020A-526 - MPB - Microwave Preselector Bypass
- N9020A-526 - CR3 - Wideband IF Output
- N9020A-526 - CRP - Programmable IF Output
- N9020A-526 - DP2 - Digital Processor with 16-bit ADC and 100 MSa/s sample rate
- N9020A-526 - EP2 - Enhanced Phase Noise Performance
- N9020A-526 - RT1 - Real-Time Spectrum Analyzer, minimum detectable signal duration 11.42 ns
- N9020A-526 - RT2 - Real-Time Spectrum Analyzer, minimum detectable signal duration 5.0 ns
- N9020A-526 - YAS - Analog Demodulation
- N9020A-526 - PC2 - Processor upgrade
- N9020A-526 - PC4 - Processor upgrade
| Model | N9020A-526 |
|---|
The Keysight (Agilent) N9020A-526 X-Series spectrum analyser supports frequencies up to 26.5 GHz, enabling advanced microwave signal analysis for diverse RF applications.
It offers a standard 25 MHz bandwidth with optional expansion, spurious-free dynamic range, and seamless SCPI control, making it ideal for high-frequency design verification.
Testwall can supply the used Keysight (Agilent) N9020A-526, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N9020A-526.
