Keysight (Agilent) N9915C
| Attribute | Value |
|---|---|
| Frequency Range | 2 MHz to 9 GHz |
| Measurement Modes | Cable and Antenna Analyzer, Vector Network Analyzer, Power Meter, Frequency Counter, Vector Voltmeter |
| Dynamic Range | >100 dB |
| Output Power Range | -45 dBm to 0 dBm |
| Number of Ports | 2-Port Vector Network Analyzer |
| Display | 8.4-inch color LCD touchscreen, 800 x 600 resolution |
| Battery Life | Up to 3.5 hours with standard battery pack |
| Connector Type | Type-N (50 Ohm) |
| Operating Temperature | -10°C to +55°C |
| Weight | Approximately 3.6 kg (7.9 lbs) |
Keysight (Agilent) N9915C Options:
- N9915C - 233 - Spectrum Analyzer
- N9915C - 010 - VNA Time Domain
- N9915C - 210 - VNA Transmission/Reflection (T/R) - S11, S21 magnitude and phase
- N9915C - 211 - VNA 2-port S-parameters (S11, S21, S22, S12)
- N9915C - 212 - Mixed-Mode S-Parameters
- N9915C - 209 - Extended Range Transmission Analysis (ERTA)
- N9915C - 215 - TDR Cable Measurements
- N9915C - 220 - Tracking Generator or Independent Source
- N9915C - 235 - Preamplifier
- N9915C - 236 - Interference Analyzer and Spectrogram
- N9915C - 238 - Spectrum Analyzer Time Gating
- N9915C - 302 - External USB Power Sensor Support
- N9915C - 307 - Built-In GNSS (GPS+) Receiver
- N9915C - 308 - Vector Voltmeter (VVM)
- N9915C - 309 - DC Bias Variable-Voltage Source
- N9915C - 310 - Built-in Power Meter
- N9915C - 312 - Channel Scanner
- N9915C - 320 - Reflection Measurements (RL, VSWR)
- N9915C - 330 - Pulse Measurements
- N9915C - 350 - Real-Time Spectrum Analyzer (RTSA)
- N9915C - 351 - I/Q Analyzer (IQA)
- N9915C - 352 - Indoor and Outdoor Mapping
- N9915C - 353 - I/Q Streaming
- N9915C - 355 - AM/FM Analog Demodulation, Tune and Listen
- N9915C - 356 - Noise Figure (NF)
- N9915C - 357 - Pulse Generator
- N9915C - 358 - EMF Measurements
- N9915C - 360 - Phased Array Antenna Support
- N9915C - 361 - EMI Measurements
- N9915C - 370 - Over-the-Air (OTA) LTE FDD
- N9915C - 371 - Over-the-Air (OTA) LTE TDD
- N9915C - 378 - Over-the-Air (OTA) 5G NR
- N9915C - 030 - Remote Control Capability
- N9915C - 208 - USB Power Sensor Measurements versus Frequency (FOPS)
- N9915C - B04 - 40 MHz Real-Time/IQ Analysis Bandwidth
- N9915C - B10 - 120 MHz Real-Time/IQ Analysis Bandwidth
| Model | N9915C |
|---|

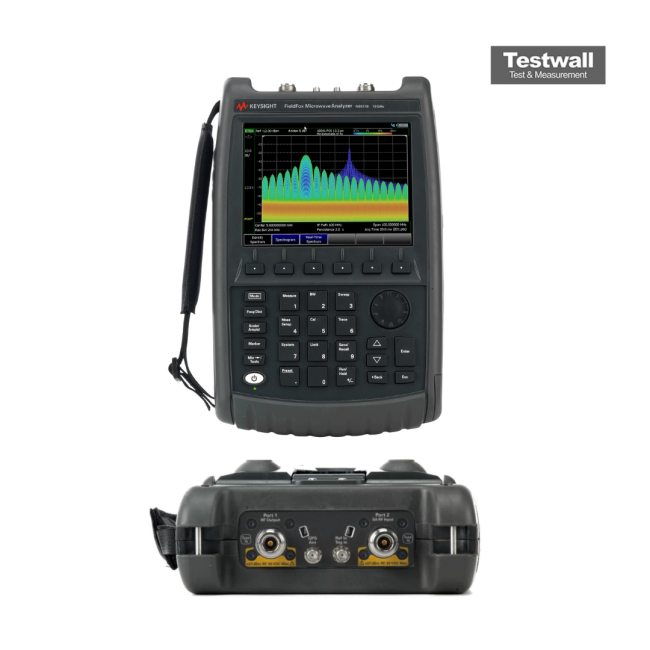

Keysight (Agilent) N9915C Handheld Microwave Analyzer
The Keysight (Agilent) N9915C Handheld Microwave Analyzer is a versatile and portable instrument designed for a wide range of RF and microwave measurements. It offers a combination of spectrum analysis, network analysis, and signal generation capabilities, making it a valuable tool for field enginners, technicians, and researchers. Keysight (Agilent) N9915C Handheld Microwave Analyzer can withstand toughest working conditions with a ruggedized yet lightweight and portable battery-powered design for measuring RF devices like cables, antennas, filters, amplifiers, and signal/spectrum analysis.
Keysight (Agilent) N9915C Handheld Microwave Analyzer can capture elusive signals with up to 120 MHz gap-free, real-time bandwidth and measures all four S-parameters simultaneously with 115 dB dynamic range. It can make accurate spectrum analyzer measurements ( ± 0.3 dB) without warmup. Keysight (Agilent) N9915C performs over-the-air measurements for 5G NR and LTE and uses GPS/GNSS for geolocation and timestamping. You can create your specialized handheld analyzer solution by selecting FieldFox options and features to address cable and antenna test (CAT) spectrum analysis (SA) or vector network analysis (VNA) real time spectrum analyzer and over the air digital demodulation analysis required for your application.
Specifications for the Keysight (Agilent) N9915C Handheld Microwave Analyzer Include:
| Frequency range | 3 kHz to 10 GHz |
| Dynamic range | 115 dB |
| Max output power | 8 (dBm) |
| Accuracy (-10 to 55 °C) | ± 0.9 ppm (spec) + aging |
