Keysight (Agilent)

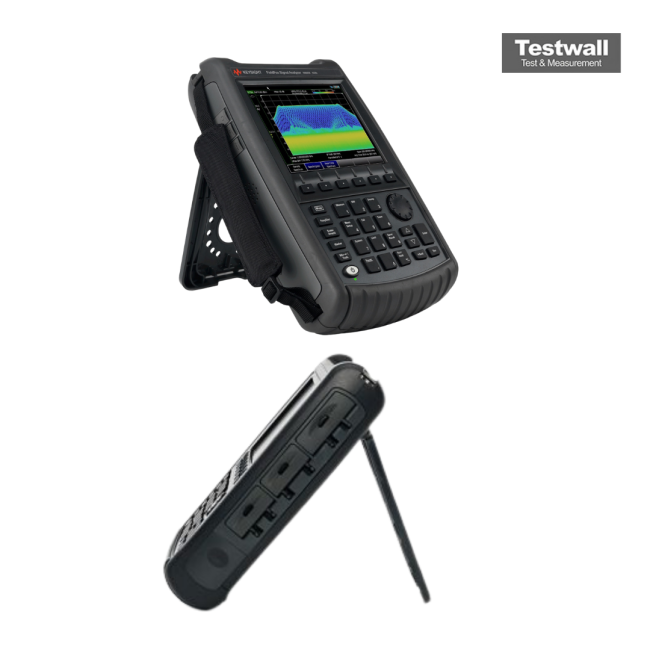

Keysight (Agilent) N9935B
9GHz Fieldfox Handheld Spectrum Analyzer
100 kHz to 6.5 GHz Frequency Range
-163 dBm/Hz (typical, with preamp on) Displayed Average Noise Level (DANL)
-104 dBc/Hz at 10 kHz offset (typical, at 1 GHz carrier) Phase Noise
Up to 103 dB (typical) Dynamic Range
1 Hz to 3 MHz Resolution Bandwidth (RBW)
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 6.5 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (typical, with preamp on) |
| Phase Noise | -104 dBc/Hz at 10 kHz offset (typical, at 1 GHz carrier) |
| Dynamic Range | Up to 103 dB (typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Input Impedance | 50 Ohms |
| Display | 6.5-inch color LCD touchscreen (800 x 480 pixels) |
| Battery Life | Up to 4 hours (with internal battery) |
| Operating Temperature Range | -10°C to +55°C |
| Model | N9935B |
|---|
Keysight (Agilent) N9935B 9GHz Fieldfox Handheld Spectrum Analyzer Description: Frequency Range: 9 kHz to 9 GHz Base model includes Signal Analyzer as standard Options to add Reflection measurements, Real-time spectrum analyzer, I/Q analysis etc. Lightweight, portable & battery powered Keysight (Agilent) N9935B 9GHz Fieldfox Handheld Spectrum Analyzer
