Keysight (Agilent)

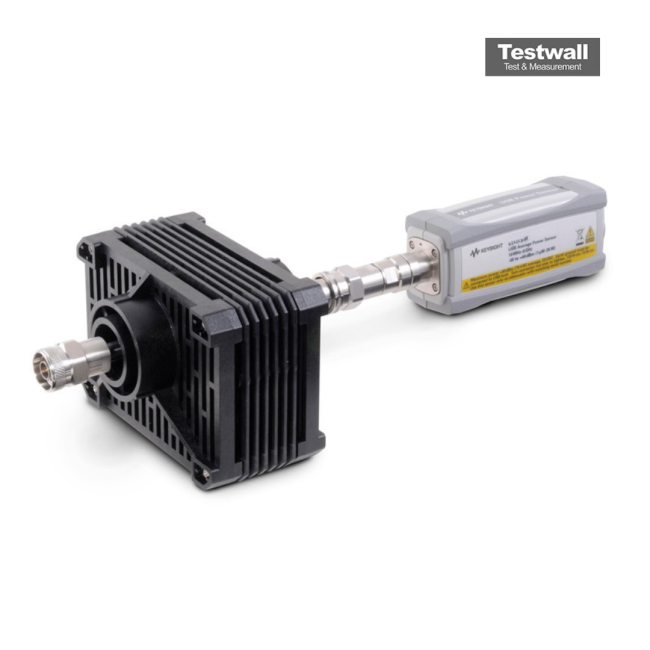

Keysight (Agilent) U2000B
USB Power Sensor, 10 MHz to 18 GHz, -30 dBm to +44 dBm
10 MHz to 18 GHz Frequency Range
-30 to +44 dBm Power Range
1.12 to 1.24 max. SWR
Type-N male Connector
USB 2.0 Interfaces
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Power Range | -30 to +44 dBm |
| SWR | 1.12 to 1.24 max. |
| Connector | Type-N male |
| Interfaces | USB 2.0 |
| Sensor Type | USB average power sensor (diode) |
| Maximum Power | +45 dBm average, +47 dBm peak (1 µs) |
| Measurement Speed | up to 110 readings/s (fast), 1000 readings/s (buffered) |
| Compatible Meters | standalone via PC (BenchVue); N9340A/B, MXG, PNA/PNA-L/PNA-X |
Compatible power meters
Keysight (Agilent) U2000B Options:
- U2000B - 1A7 - ISO 17025 calibration with test data
- U2000B - A6J - ANSI Z540 calibration with test data
- U2000B - R-51B-001-5Z - Warranty Assurance Plan - Return to Keysight - 5 years
- U2000B - OB1 - English language Operating and Service Guide
- U2000B - ABD - German language Operating and Service Guide
- U2000B - ABE - Spanish language Operating and Service Guide
- U2000B - ABF - French language Operating and Service Guide
- U2000B - ABJ - Japanese language Operating and Service Guide
- U2000B - ABZ - Italian language Operating and Service Guide
- U2000B - AB2 - Simplified Chinese language Operating and Service Guide
The Keysight U2000B (Agilent) USB Power Sensor makes setup and measurement fast without the need of a power meter, just plug the USB sensor cable to the PC, you can control the USB power sensor with the FREE Power Panel (N1918A) software.
Features and Specifications of the Keysight U2000B USB Power Sensor include:
- Frequency range of 10 MHz to 18 GHz
- Wide dynamic range (-30 dBm to +44 dBm)
- Internal zeroing while connected to the DUT
- High measurement speed of up to 250readings/second
- Support internal and external trigger measurements
- Display power measurements on a PC without the need of power meter
- Compatible with other Agilent instruments
- Internal triggering and trace display capability
