Keysight (Agilent)
Keysight (Agilent) U7228C
100MHz to 26.5GHz USB Preamplifier
USB 3.1 Gen 2 (10 Gbps) Interface Standard
USB 3.1 Gen 2 Tx/Rx Compliance and Debug Compliance Test Coverage
10 Gbps Data Rate
Keysight Infiniium Series Oscilloscopes Oscilloscope Compatibility
Compliance Test Software (U7228C License) Software Type
| Attribute | Value |
|---|---|
| Interface Standard | USB 3.1 Gen 2 (10 Gbps) |
| Compliance Test Coverage | USB 3.1 Gen 2 Tx/Rx Compliance and Debug |
| Data Rate | 10 Gbps |
| Oscilloscope Compatibility | Keysight Infiniium Series Oscilloscopes |
| Software Type | Compliance Test Software (U7228C License) |
| Test Modes | Transmitter (Tx) and Receiver (Rx) Testing |
| Automated Test Support | Automated compliance testing per USB-IF specifications |
| Measurement Capabilities | Eye diagram, jitter, voltage levels, rise/fall times, and signal quality measurements |
| Standards Compliance | USB 3.1 Specification Revision 1.0, USB-IF Compliance Program |
| Platform Requirement | Windows-based PC or compatible Keysight Infiniium oscilloscope running the U7228C application software |
| Model | U7228C |
|---|

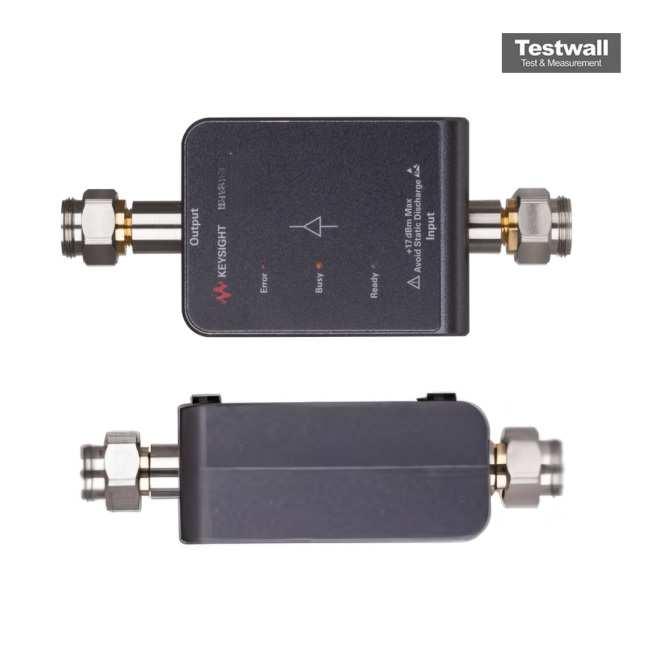

The Keysight (Agilent) U7228C is a USB preamplifier designed for wide frequency applications ranging from 100 MHz to 26.5 GHz. Engineered with a high-gain design, it enhances signal fidelity while minimizing noise, ideal for sensitive measurement environments.
Perfect for integration in spectrum analysis and signal detection systems, the U7228C boosts low-level signals and ensures precise performance in high-frequency scenarios.
Testwall can supply the used Keysight (Agilent) U7228C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) U7228C.
