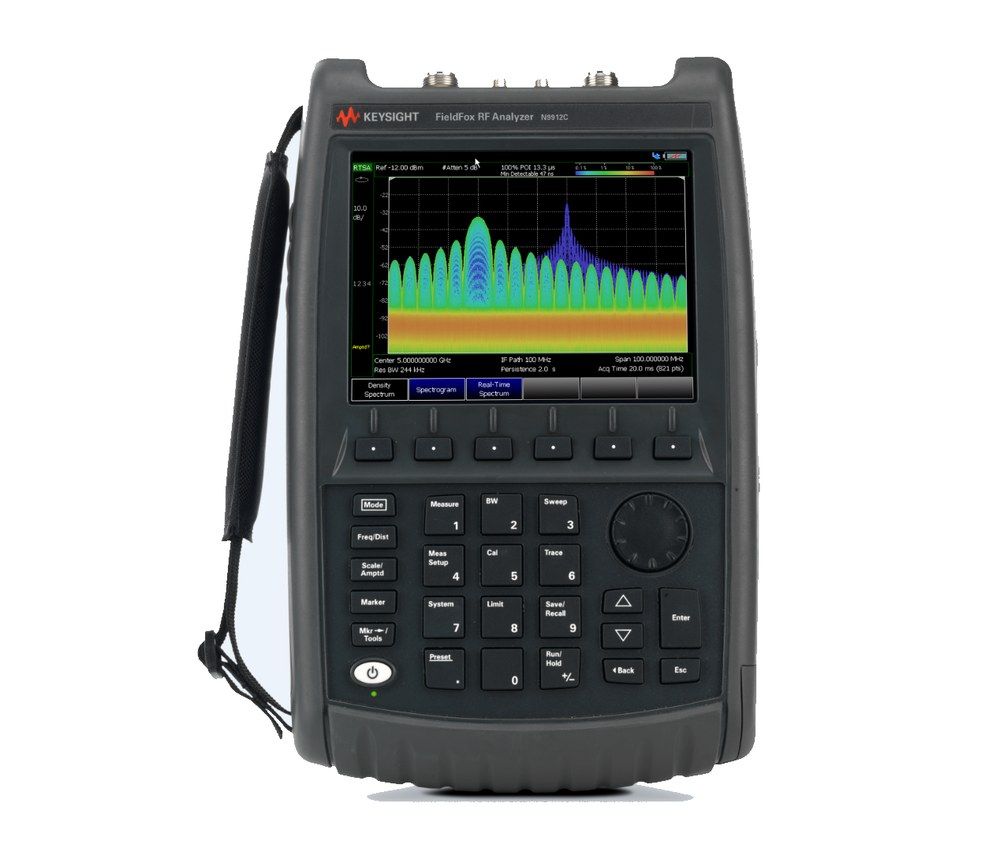

Keysight (Agilent) N9912C
| Attribute | Value |
|---|---|
| Frequency Range (CAT/VNA) | 3 kHz to 4, 6.5 or 10 GHz (option dependent) |
| Spectrum Analyser Range | 3 kHz to 4, 6.5 or 10 GHz (option dependent) |
| Test Port Connector | Type-N (female) |
| VNA Dynamic Range | 115 dB |
| Real-Time Bandwidth | Up to 40 MHz gap-free |
| SA Amplitude Accuracy | ±0.3 dB, no warm-up required |
| Geolocation | GPS/GNSS location and timestamping |
| Weight | 3.4 kg (7.4 lb) |
Keysight (Agilent) N9912C Options:
- CA4 / CA6 / CAX - Cable and antenna analyser, 4 / 6.5 / 10 GHz
- NA4 / NA6 / NAX - Vector network analyser, 4 / 6.5 / 10 GHz
- SA4 / SA6 / SAX - Spectrum analyser, 4 / 6.5 / 10 GHz
- 010 - VNA time domain
- 215 - TDR cable measurements
- 220 - Tracking generator
- 235 - Preamplifier
- 236 - Interference analyser and spectrogram
- 302 - USB power sensor support
- 307 - GPS receiver
- 308 - Vector voltmeter
- 310 - Built-in power meter
- 350 - Real-time spectrum analyser (RTSA)
- 378 - Over-the-air (OTA) 5G NR
- B04 - 40 MHz analysis bandwidth
The Keysight N9912C is a handheld FieldFox RF analyser that can be configured as a cable and antenna analyser, vector network analyser and spectrum analyser, each at 4, 6.5 or 10 GHz. Frequency, bandwidth and software capabilities are licence-key activated and upgradable. It offers up to 40 MHz gap-free real-time bandwidth and ±0.3 dB SA amplitude accuracy without warm-up.
One function must be chosen from each of the CA, NA and SA groups (e.g. CA6/NA6/SA6), all upgradable via N9912CU. Applications include cell-site cable and antenna testing, interference hunting, 5G NR/LTE over-the-air measurements and general RF component test.
Testwall can supply the used Keysight (Agilent) N9912C, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Keysight (Agilent) N9912C.
