Keysight (Agilent)
Keysight (Agilent) 16190B
Performance Test Kit 7mm
DC to 3 GHz Frequency Range
Keysight E4991A, E4991B Impedance Analyzers Compatible Instruments
Bare Lead / SMD Component Test Fixture Fixture Type
Adjustable, suitable for chip components and bare lead devices Electrode Gap
7 mm APC-7 Connector Interface Connector Type
| Attribute | Value |
|---|---|
| Frequency Range | DC to 3 GHz |
| Compatible Instruments | Keysight E4991A, E4991B Impedance Analyzers |
| Fixture Type | Bare Lead / SMD Component Test Fixture |
| Electrode Gap | Adjustable, suitable for chip components and bare lead devices |
| Connector Type | 7 mm APC-7 Connector Interface |
| Measurement Parameters | Impedance (Z), Admittance (Y), Capacitance (C), Inductance (L), Resistance (R), Q Factor, D Factor |
| Component Size Compatibility | Supports chip components from 0402 to 1206 and larger discrete components |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Calibration Support | Open, Short, and Load calibration supported for accurate fixture compensation |
Keysight (Agilent) 16190B Options:
- 16190B - N/A - Performance Test Kit
| Model | 16190B |
|---|

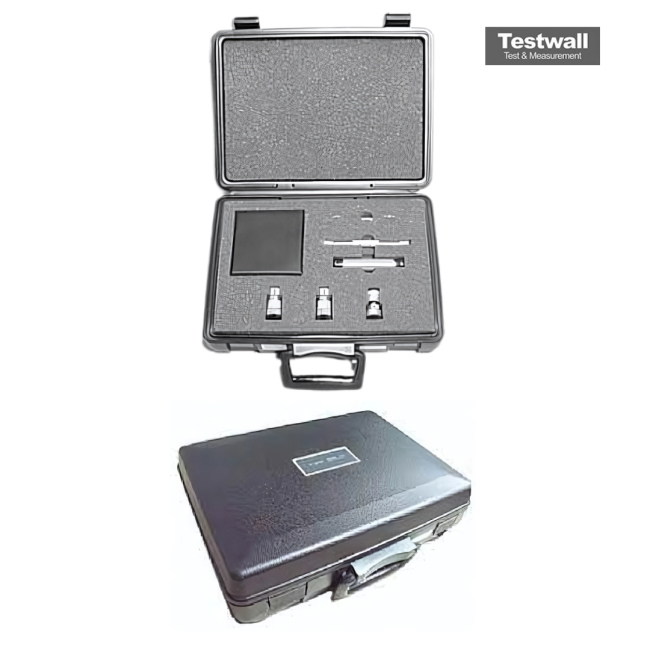

The used Keysight (Agilent) 16190B is a high-precision performance test kit developed to verify impedance measurement accuracy in LCR meters or impedance analyzers equipped with 7 mm measurement terminals. It ensures consistent and reliable validation of instrument performance across test setups. The 16190B is essential for periodic verification routines and is used in accordance with the specific procedures outlined in the corresponding instrument’s operation or service manual.
Ideal for metrology labs and production lines requiring traceable and repeatable impedance validation standards.
Testwall can supply the used Keysight (Agilent) 16190B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16190B.
