Tektronix

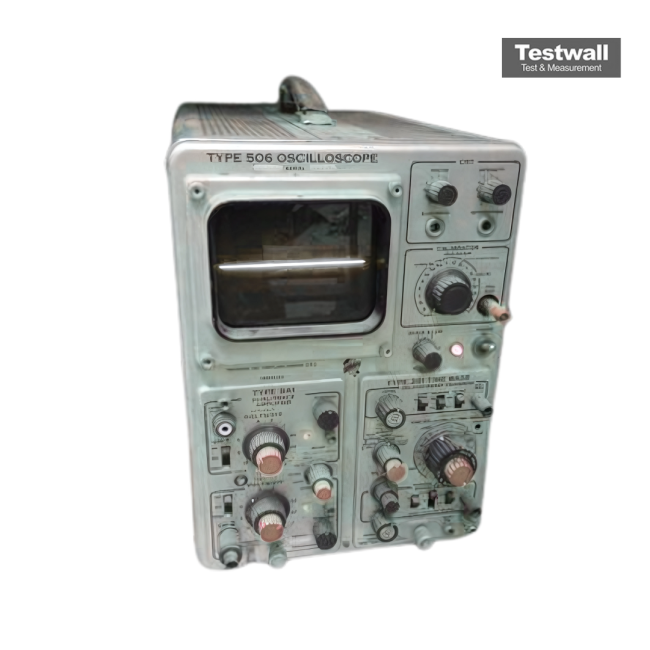

Tektronix 506
Portable Oscilloscope Instrument Type
2 Number of Channels
15 MHz Bandwidth
5 mV/div to 5 V/div Vertical Sensitivity
0.5 µs/div to 0.5 s/div Time Base Range
| Attribute | Value |
|---|---|
| Instrument Type | Portable Oscilloscope |
| Number of Channels | 2 |
| Bandwidth | 15 MHz |
| Vertical Sensitivity | 5 mV/div to 5 V/div |
| Time Base Range | 0.5 µs/div to 0.5 s/div |
| Display Type | CRT (Cathode Ray Tube) |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Power Requirements | 115/230 VAC, 50/60 Hz |
| Operating Temperature Range | 0°C to +50°C |
| Trigger Modes | Auto, Normal, Single Sweep |
| Model | 506 |
|---|
The Tektronix 506 Curve Tracer is engineered for semiconductor testing, offering precise VI curve plotting with variable sweep voltages and a CRT-based display for real-time visualization. It fits compactly on lab benches and features robust mechanical controls for reliable operation.
Ideal for laboratory and educational environments, the 506 enables accurate characterization of semiconductors through variable sweeps and clear VI trace representation.
Testwall can supply the used Tektronix 506, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 506.
