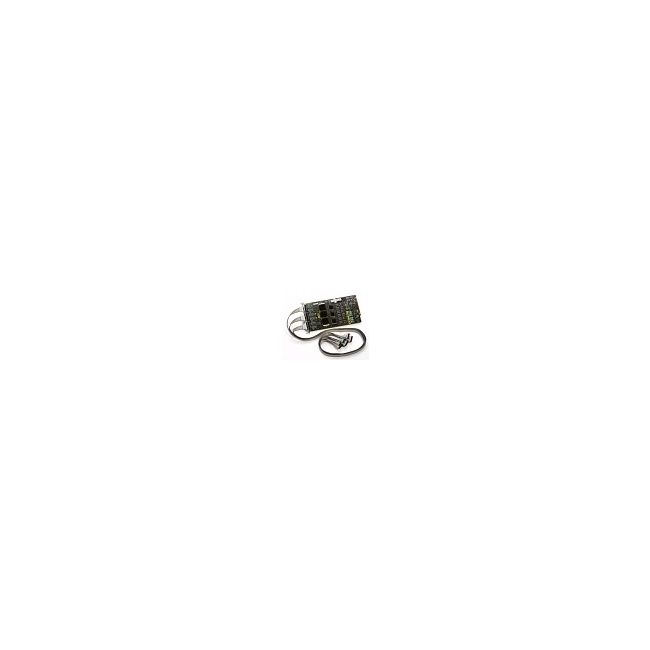

Keysight (Agilent) 16910A
| Attribute | Value |
|---|---|
| Number of Channels | 136 channels |
| Maximum State Speed | 400 MHz |
| Maximum Timing Speed | 2 GHz (half channel), 1 GHz (full channel) |
| Memory Depth | 64 Mb per channel |
| Threshold Voltage Range | -6V to +6V |
| Minimum Detectable Pulse Width | 500 ps |
| Setup/Hold Time | Adjustable in 50 ps increments |
| Module Type | Logic Analyzer Module (compatible with 16900 Series mainframe) |
| Probing System | Compatible with E5378A, E5379A, E5380A probe cables |
| Operating Temperature | 0°C to 55°C |
| Model | 16910A |
|---|
The Keysight (Agilent) 16910A is a 102-channel logic analysis module offering 4 GHz timing zoom and 250 MHz state analysis. It includes 64 K memory, 1.0 GHz/500 MHz conventional timing with deep memory, and supports automated threshold/sample setup for accurate high-speed bus measurements.
This module delivers transitional timing up to 500 MHz, state clock rates up to 450 MHz, and data rates up to 500 Mb/s. Simultaneous eye diagrams on all channels assist in signal integrity analysis.
Testwall can supply the used Keysight (Agilent) 16910A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16910A.
