Keysight (Agilent)

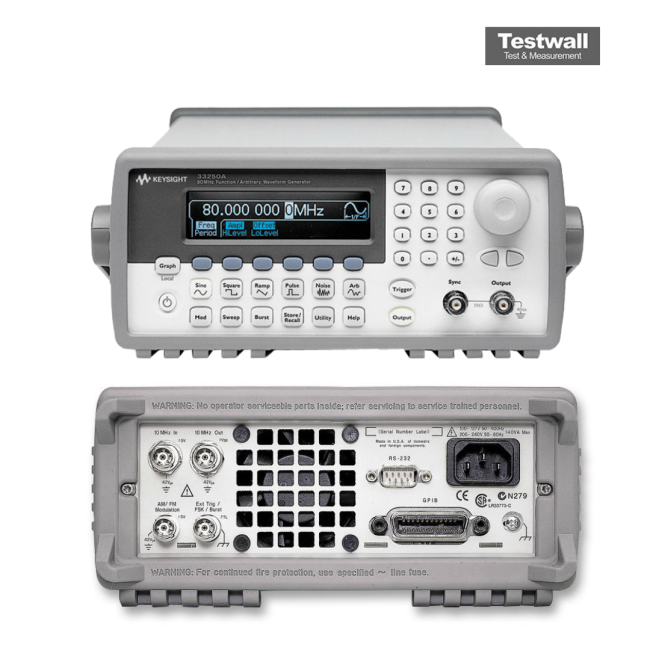

Keysight (Agilent) 33250A
Function/Arbitrary Waveform Generator
1 µHz to 80 MHz Frequency Range
Sine, Square, Ramp, Triangle, Pulse, Noise, DC, and Arbitrary Waveforms Waveform Output
10 mVpp to 10 Vpp (into 50 Ω) Amplitude Range
64,000 points Arbitrary Waveform Memory Depth
200 MSa/s Sample Rate (Arbitrary Waveform)
| Attribute | Value |
|---|---|
| Frequency Range | 1 µHz to 80 MHz |
| Waveform Output | Sine, Square, Ramp, Triangle, Pulse, Noise, DC, and Arbitrary Waveforms |
| Amplitude Range | 10 mVpp to 10 Vpp (into 50 Ω) |
| Arbitrary Waveform Memory Depth | 64,000 points |
| Sample Rate (Arbitrary Waveform) | 200 MSa/s |
| Vertical Resolution | 14-bit |
| Modulation Types | AM, FM, PM, FSK, PWM, and Sweep/Burst |
| Output Impedance | 50 Ω (typical) |
| Interface/Connectivity | GPIB and RS-232 standard interfaces |
| Display | Graphical LCD display for waveform visualization |
Keysight Technologies 33250A Options:
- 33250A - 0B0 - Delete manual
- 33250A - 1CM - Rackmount kit (also sold as Agilent 34190A)
- 33250A - A6J - ANSI Z540 calibration
- 33250A - AB0 - Taiwan: Chinese manual
- 33250A - AB1 - Korea: Korean manual
- 33250A - AB2 - China: Chinese manual
- 33250A - ABA - English: English manual
- 33250A - ABD - Germany: German manual
- 33250A - ABF - France: French manual
- 33250A - ABJ - Japan: Japanese manual
| Model | 33250A |
|---|
The Keysight (Agilent) 33250A Function / Arbitrary Waveform Generator is a high-precision tool designed for generating complex and accurate signals. With an 80 MHz bandwidth, it supports sine and square waveforms, pulse generation up to 50 MHz with adjustable rise/fall times, and built-in ramp, triangle, noise, and DC waveforms. Its arbitrary waveform capability delivers 12-bit resolution at 200 MSa/s with a 64 K-point memory, ideal for simulating real-world signals. Modulation support includes AM, FM, PM, FSK, and PWM, with additional features like linear/log sweeps and burst mode.
The Keysight (Agilent) 33250A features a color graphical display for intuitive signal setup and verification, and offers USB, GPIB, and LAN interfaces for flexible integration.
Testwall can supply the used Keysight (Agilent) 33250A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 33250A.
