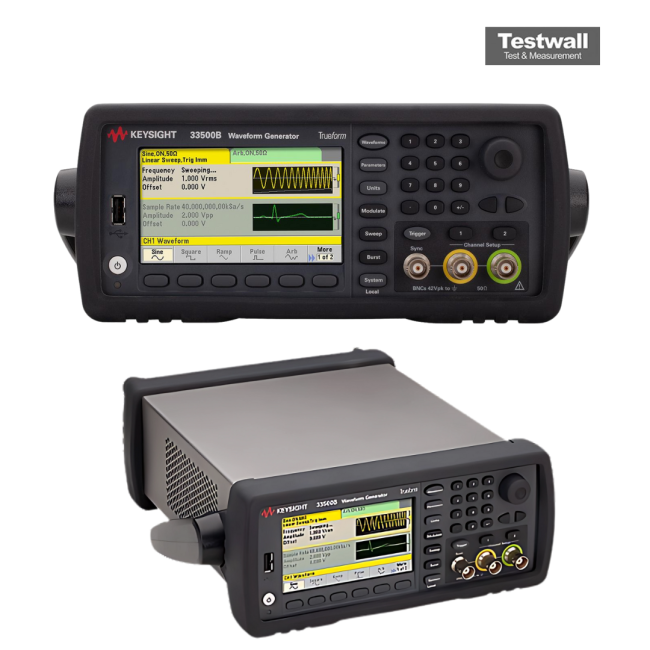

Keysight (Agilent) 33511B
| Attribute | Value |
|---|---|
| Channels | 1 channel |
| Sample Rate | 160 MSa/s |
| Vertical Resolution | 16 bit |
| Rise/Fall Time | 8.4 ns (nom.) |
| Jitter | < 40 ps rms |
| Frequency Range | 1 µHz to 20 MHz (sine, square, pulse); up to 200 kHz (ramp, triangle) |
| Amplitude | 1 mVpp to 10 Vpp into 50 Ω (2 mVpp to 20 Vpp open circuit) |
| Modulation | AM, FM, ΦM, FSK, BPSK, PWM, Sum |
| Waveforms | sine, square, ramp, triangle, pulse, noise, DC, arbitrary |
| Arbitrary Memory | 1 MSa per channel |
| Harmonic Distortion | THD < 0.04%, 20 Hz to 20 kHz (typ.) |
| Sweep Modes | linear, log, list (up to 128 frequencies) |
| Timebase Aging | ±1 ppm per year |
| Output Impedance | 50 Ω (nom.) |
| Interfaces | GPIB, LAN (LXI), USB |
| Display | 4.3 in color TFT, 480 × 272 |
| Dimensions | 261.1 × 103.8 × 303.2 mm |
| Weight | 3.3 kg |
The Keysight (Agilent) 33511B waveform generator features exclusive Trueform signal technology, offering superior waveform fidelity and precision. It supports sine waves with 5 × lower harmonic distortion, pulses up to 20 MHz with 10 × less jitter, and optional arbitrary waveform capabilities. With a 160 MSa/s sampling rate, 16‑bit resolution, and up to 16 MSa/channel memory, it ensures high accuracy and flexibility for demanding test requirements.
Ideal for creating, editing, and uploading custom waveforms via USB, LAN, or GPIB, the 33511B is upgradeable to 30 MHz and comes with BenchVue software for seamless control and automation.
Testwall can supply the used Keysight (Agilent) 33511B, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 33511B.
Options and configurations
- Arbitrary Memory: 1 MSa per channel (16 MSa per channel with Opt. MEM)
- Timebase Aging: ±1 ppm per year (±0.1 ppm with Opt. OCX)
