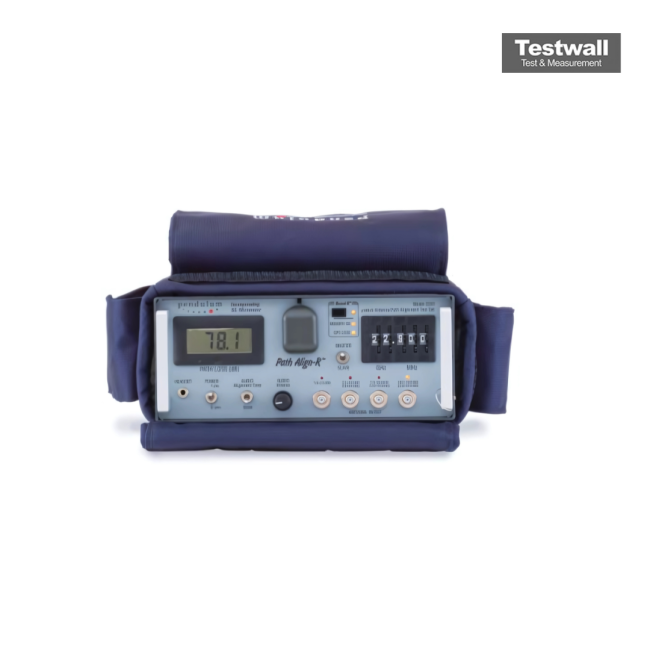

Pendulum 2200 & 2240 Path Align-R Antenna Path Alignment Test Set
2 GHz to 40 GHz Frequency Range
Antenna Path Alignment for Microwave Links Measurement Type
Analog Bar Graph and Digital Readout Display Type
Up to 30 dB Dynamic Range
Audible Tone and Visual Bar Graph Signal Level Indication
| Attribute | Value |
|---|---|
| Frequency Range | 2 GHz to 40 GHz |
| Measurement Type | Antenna Path Alignment for Microwave Links |
| Display Type | Analog Bar Graph and Digital Readout |
| Dynamic Range | Up to 30 dB |
| Signal Level Indication | Audible Tone and Visual Bar Graph |
| Power Source | Internal Rechargeable Battery Pack |
| Operating Temperature | -10°C to +55°C |
| Input Connector | N-Type Female RF Input Connector |
| Communication Interface | Wireless Link Between Near-End and Far-End Units |
| Kit Contents | Two Alignment Units (2200 and 2240), Carrying Case, Accessories |
Pendulum 2200 & 2240 Path Align-R Antenna Path Alignment Test Set Options:
- 2200 - Opt 01 - 1.8-2.5 GHz frequency band
- 2200 - Opt 02 - 5.8-6.6 GHz frequency band
- 2200 - Opt 03 - 11.0-12.0 GHz frequency band
- 2200 - Opt 04 - 18.1-19.4 GHz frequency band
- 2240 - Opt 01 - 1.8-2.5 GHz frequency band
- 2240 - Opt 02 - 3.5-5.0 & 5.8-6.6 GHz frequency band
- 2240 - Opt 03 - 7.5-10.0 & 11.0-12.0 GHz frequency band
- 2240 - Opt 04 - 15 & 18.1-19.4 & 22.0-23.5 GHz frequency band
- 2241 - Opt 01 - 1.8-2.5 GHz frequency band
- 2241 - Opt 02 - 3.5-5.0 & 5.8-6.6 GHz frequency band
- 2241 - Opt 03 - 7.5-10.0 & 11.0-12.0 GHz frequency band
- 2241 - Opt 04 - 15 & 18.1-19.4 & 22.0-23.5 GHz frequency band
| Model | 2200 |
|---|
- Portable, battery-powered, lightweight for field applications
- Full duplex voice communication during path alignment over link
- Variable alignment tone varies with received signal strength
- Four tuneable operating frequency bands
- Data logger with embedded GPS receiver for recording date/time, position, and path-loss data
- Accurately document antenna alignment with Log View-R software, included
- Two unit set, includes weather resistant backpack, headsets, battery and more
