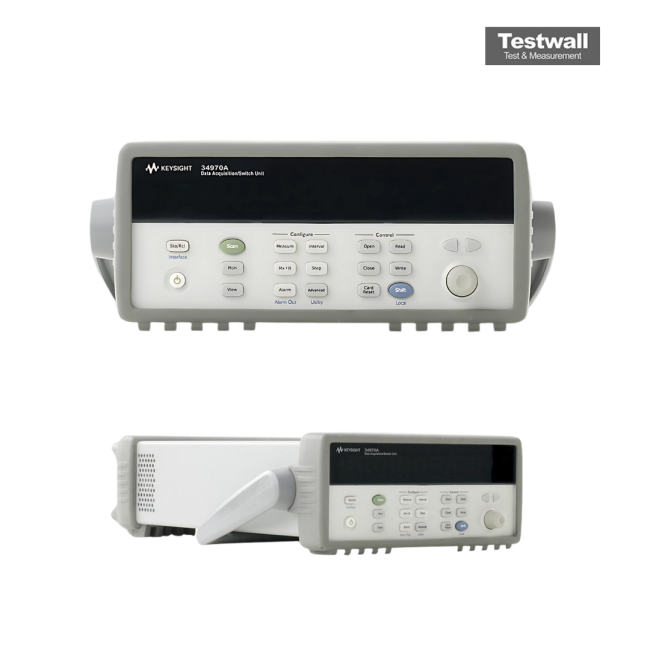

Keysight (Agilent) 34970A-001
| Attribute | Value |
|---|---|
| Number of Slots | 3 |
| Maximum Channels | Up to 120 channels (with multiplexer plug-in modules) |
| Built-in DMM Resolution | 6.5 digits |
| Scanning Speed | Up to 250 channels per second |
| Interface | RS-232 (Option 001 replaces GPIB with RS-232) |
| Measurement Functions | DC/AC Voltage, DC/AC Current, 2/4-Wire Resistance, Frequency, Period, Temperature, Diode Test |
| Memory | 50,000 readings with time stamp |
| Power Requirements | 100–240 VAC, 50/60 Hz, 150 VA maximum |
| Operating Temperature Range | 0°C to 55°C |
| Dimensions (W x H x D) | 425.5 mm x 88.5 mm x 497 mm (16.75 in x 3.48 in x 19.57 in) |
| Model | 34970A-001 |
|---|
The Keysight (Agilent) 34970A-001 is a high-precision data acquisition system that integrates a 6½-digit DMM, data logger, and switch system. With three module slots and Option 001’s 20-channel multiplexer (34901A), it allows flexible signal routing. It supports inputs for voltage, resistance, frequency, and temperature, and includes USB, GPIB, and RS-232 interfaces, with scan rates up to 250 channels/sec.
Ideal for automated testing, environmental monitoring, and R&D, the 34970A-001 ensures precise measurements with broad input compatibility and advanced data logging features.
Testwall can supply the used Keysight (Agilent) 34970A-001, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 34970A-001
