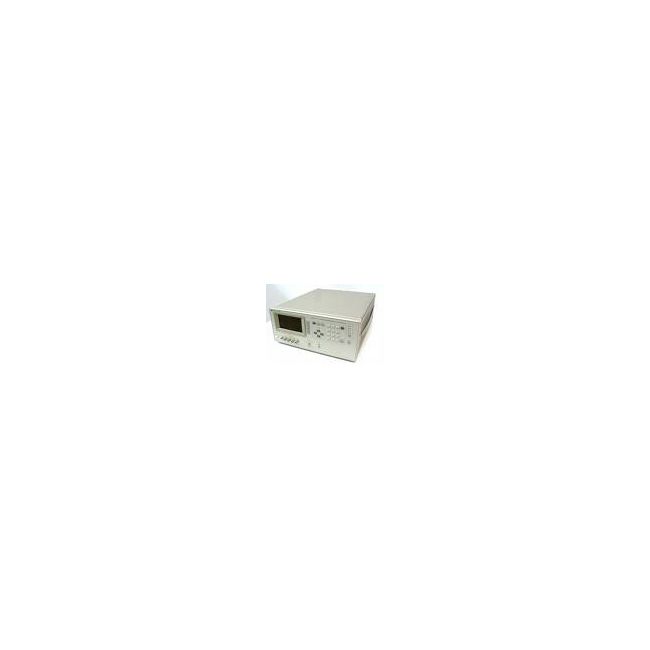

Keysight (Agilent) 4279A
| Attribute | Value |
|---|---|
| Frequency | 1 kHz / 1 MHz |
| Measurement Parameters | C-D, C-R, C-G, L-D, L-R, L-G, Z-θ, Y-θ, R-X, G-B |
| Capacitance Range | 0.001 pF to 9.9999 F |
| Basic Accuracy | 0.05% |
| Test Signal Level | 5 mV rms to 1 V rms (programmable) |
| DC Bias Voltage | 0 V to ±35 V (internal), up to ±1000 V (external) |
| Measurement Speed | Fast: 6 ms, Medium: 30 ms, Slow: 120 ms |
| Interface | GPIB (IEEE-488) |
| Power Requirements | 100/120/220/240 VAC, 48–66 Hz, 80 VA max |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
Keysight Technologies 4279A Options:
- 4279A - 003 - 1% Frequency Shift: Test frequency is 1% higher than the standard unit to prevent possible test signal interference when the component test contacts are located close to those of other test units.
- 4279A - 009 - Delete Manual
- 4279A - 907 - Front Handle Kit
- 4279A - 908 - Rack Flange Kit
- 4279A - 909 - Rack Flange/Handle Kit
- 4279A - 910 - Extra Manual
| Model | 4279A |
|---|
The Keysight (Agilent) 4279A 1MHz C-V Meter delivers high-precision capacitance measurements from 0.00001pF to 1280.00pF with 0.1% accuracy and 6-digit resolution, including a programmable DC bias sweep up to ±38V with 0.1% voltage accuracy. Fast ranging and GP-IB data transfer reduce test time significantly.
It features selectable measurement speeds (10ms, 20ms, 30ms), automatic bias polarity control, and excels in characterizing semiconductors like varactor and MOS diodes in both manual and automated test environments.
Testwall can supply the used Keysight (Agilent) 4279A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 4279A.
