Keysight (Agilent)
Keysight (Agilent) 42942A
Terminal Adapter Kit
DC to 110 MHz Frequency Range
Keysight E4990A Impedance Analyzer Compatible Instrument
Terminal Adapter for 4-Terminal Pair Configuration Measurement Function
BNC Connectors Connector Type
4-Terminal Pair (4TP) Number of Terminals
| Attribute | Value |
|---|---|
| Frequency Range | DC to 110 MHz |
| Compatible Instrument | Keysight E4990A Impedance Analyzer |
| Measurement Function | Terminal Adapter for 4-Terminal Pair Configuration |
| Connector Type | BNC Connectors |
| Number of Terminals | 4-Terminal Pair (4TP) |
| Impedance Measurement Range | 1 mΩ to 100 MΩ |
| Test Fixture Compatibility | Compatible with Keysight 42941A Impedance Probe Kit and various test fixtures |
| Cable Length | 1 meter |
| Operating Temperature | 0°C to 55°C |
| Interface/Port | 4-Terminal Pair BNC Interface for connection to impedance analyzer measurement port |
Keysight Technologies 42942A Options:
- 42942A - Opt 001 - Delete APC-7 Open/Short/Load set
| Model | 42942A |
|---|

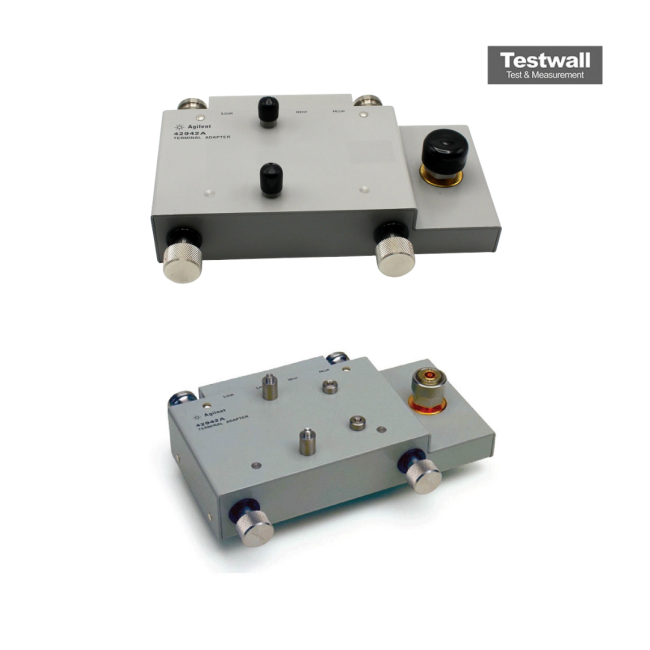

The Keysight (Agilent) 42942A Terminal Adapter transitions a four terminal-pair Impedance Analyzer configuration to a 7 mm terminal format, allowing compatibility with a variety of test fixtures.
It supports frequencies from 40 Hz to 110 MHz, withstands ±42 V peak voltage, and operates between 0 °C and 40 °C. Compact in size: 190 x 55 x 140 mm.
Testwall can supply the used Keysight (Agilent) 42942A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 42942A.
