Keysight (Agilent)

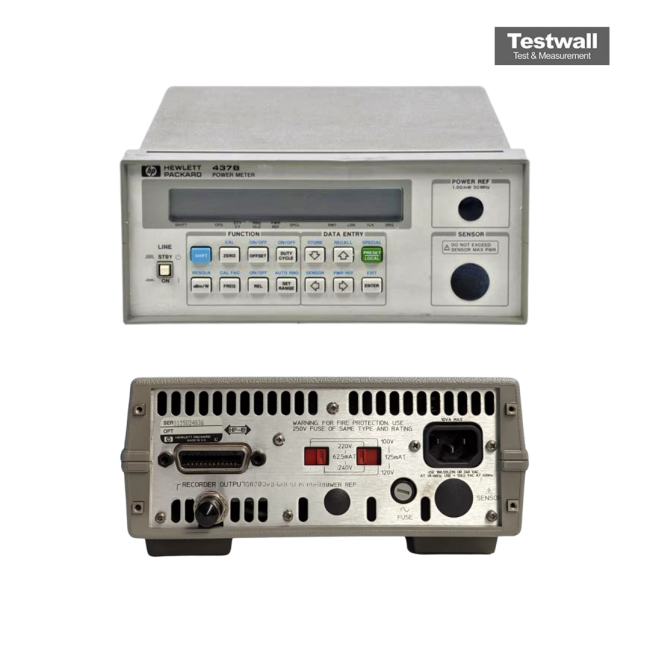

Keysight (Agilent) 437B
RF Power Meter
1 Channels
8480 series Compatible Sensors
100 kHz to 110 GHz Frequency Range
-70 to +44 dBm Power Range
±0.02 dB or ±0.5% Accuracy
€300.00 excl. VAT + free EU delivery
| Attribute | Value |
|---|---|
| Channels | 1 |
| Compatible Sensors | 8480 series |
| Frequency Range | 100 kHz to 110 GHz |
| Power Range | -70 to +44 dBm |
| Accuracy | ±0.02 dB or ±0.5% |
| Measurement Types | average |
| Display | W, dBm, %, dB, resolution 0.001 dB |
| Interfaces | GPIB, recorder output 0 to 1 V |
| Dimensions | 212 × 88 × 273 mm |
| Weight | 2.6 kg |
Compatible power sensors
| Model | Frequency Range | Power Range | Sensor Type |
| 8481A | 10 MHz to 18 GHz | -30 to +20 dBm | thermocouple |
| 8481B | 10 MHz to 18 GHz | 0 to +44 dBm | thermocouple, with 25 W attenuator |
| 8481D | 10 MHz to 18 GHz | -70 to -20 dBm | diode, average |
| 8481H | 10 MHz to 18 GHz | -10 to +35 dBm | thermocouple, with 3 W attenuator |
| 8482A | 100 kHz to 4.2 GHz | -30 to +20 dBm | thermocouple |
| 8482B | 100 kHz to 4.2 GHz | 0 to +44 dBm | thermocouple, with 25 W attenuator |
| 8482H | 100 kHz to 4.2 GHz | -10 to +35 dBm | thermocouple, with 3 W attenuator |
| 8483A | 100 kHz to 2 GHz | -30 to +20 dBm | diode, average |
| 8485A | 50 MHz to 26.5 GHz (33 GHz with Opt. 033) | -30 to +20 dBm | thermocouple |
| 8485D | 50 MHz to 26.5 GHz (33 GHz with Opt. 033) | -70 to -20 dBm | diode, average |
| 8487A | 50 MHz to 50 GHz | -30 to +20 dBm | thermocouple |
| 8487D | 50 MHz to 50 GHz | -70 to -20 dBm | diode, average |
| R8486A | 26.5 to 40 GHz | -30 to +20 dBm | thermocouple, waveguide |
| R8486D | 26.5 to 40 GHz | -70 to -20 dBm | diode, average |
| Q8486A | 33 to 50 GHz | -30 to +20 dBm | thermocouple, waveguide |
| Q8486D | 33 to 50 GHz | -70 to -20 dBm | diode, average |
| V8486A | 50 to 75 GHz | -30 to +20 dBm (Opt. H02: -60 to +20 dBm) | diode, average, waveguide |
| W8486A | 75 to 110 GHz | -30 to +20 dBm | diode, average, waveguide |
| 8484A | 10 MHz to 18 GHz | -70 to -20 dBm | diode, average |
Keysight Technologies 437B Options:
- 437B - 002 - Supplies a parallel rear panel sensor input
- 437B - 003 - Supplies a parallel rear panel sensor input and moves reference oscillator to rear panel
- 437B - 004 - Delete the HP 11730A sensor cable provided
- 437B - 401 - Provides side-carrying handle and standoff feet
- 437B - 915 - Service Manual
- 437B - 916 - Extra Operating Manual
- 437B - W30 - Two additional years of return-to-HP warranty
The Keysight (Agilent) 437B is a single-channel, programmable average power meter designed for fast, accurate, and cost-efficient RF and microwave power measurements. Compatible with the 8480 series power sensors, it covers a wide dynamic range from -70 dBm (100 pW) to +44 dBm (25 W) over frequencies ranging from 100 kHz to 110 GHz. Its compact 3-inch height and half-rack width make it ideal for space-sensitive ATE systems and demanding bench-top applications.
The 437B integrates a power reference for automatic calibration and zeroing, features ten preloaded sensor correction factors versus frequency, and is the only meter in its class compliant with MIL-STD-461C EMI specifications. It combines the lightweight form of plastic with the EMI shielding of metal for robust system integration.
Testwall can supply the used Keysight (Agilent) 437B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 437B.
