Keysight (Agilent) R8486D
| Attribute | Value |
|---|---|
| Sensor Type | diode, average |
| Frequency Range | 26.5 to 40 GHz |
| Maximum Power | 100 mW average, 100 mW peak |
| SWR | 1.40 max. |
| Connector | WR-28 waveguide (UG-599/U) |
| Power Range | -70 to -20 dBm (100 pW to 10 µW) |
| Linearity | ±3% at -70 to -25 dBm, ±5% at -25 to -20 dBm |
| Compatible Meters | EPM N1913A/N1914A, E4418B/E4419B, EPM-P E4416A/E4417A, P-Series N1911A/N1912A, 43xA/B, E1416A, 70100A |
| Weight | 0.26 kg |
Compatible power meters
435B · 436A · 437B · 438A · E4418A · E4419A · EPM-441A · EPM441A · EPM-442A · EPM442A · E4418B · E4419B · E4416A · E4417A · N1913A · N1914A · N1911A · N1912A · N8262A

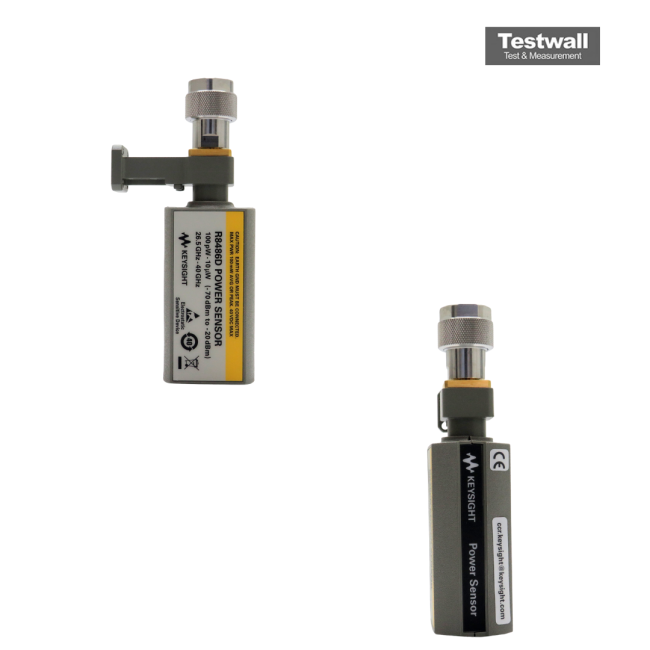

The Keysight (Agilent) R8486D is a waveguide power sensor covering a frequency range from 26.5 GHz to 40 GHz and a power measurement range of –70 dBm to –20 dBm. It supports precise low-level RF power detection with a compatible range of power meters including EPM, EPM-P, and P-series.
This sensor is ideal for high-frequency applications requiring accurate power measurements, especially in test setups involving N1913A/14A, E4418B/19B, E4416A/17A, and others.
Testwall can supply the used Keysight (Agilent) R8486D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) R8486D.
