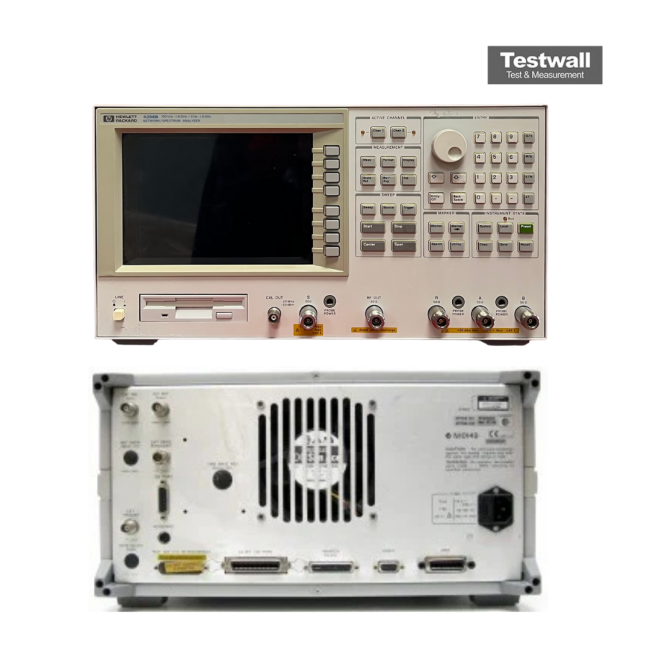

Keysight (Agilent) 4396B
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 1.8 GHz |
| Dynamic Range | 120 dB |
| Measurement Functions | Network Analysis, Spectrum Analysis, Impedance Analysis |
| Output Power Range | -50 dBm to +20 dBm |
| Impedance Measurement Range | 1 mΩ to 500 MΩ |
| Number of Measurement Points | 2 to 801 points |
| Display | 8.4-inch color LCD |
| Interface | GPIB (IEEE-488), RS-232 |
| Input Connectors | 50 Ω BNC (R, A, B channels) |
| Power Requirements | 100/120/220/240 VAC, 50/60 Hz, 150 VA maximum |
Keysight Technologies 4396B Options:
- 4396B - 800 - Standard frequency reference
- 4396B - 1D5 - Precision frequency reference
- 4396B - 010 - Impedance measurement
- 4396B - 1D6 - Time-gated spectrum analysis
- 4396B - 1D7 - 50 Ω to 75 Ω input impedance conversion
| Model | 4396B |
|---|
The Keysight (Agilent) 4396B combines a vector network analyzer, spectrum analyzer, and impedance analyzer in one instrument. It features a frequency range of 100 kHz to 1.8 GHz with 1 mHz resolution and dynamic accuracy of ±0.05 dB and ±0.3 degrees. Spectrum analysis ranges from 2 Hz to 1.8 GHz with a sensitivity of -147 dBm/Hz at 1 GHz and a resolution bandwidth from 1 Hz to 3 MHz.
Suitable for lab and production environments, it supports measurements like gain, phase, noise, return loss, SWR, S-parameters, and distortion. Dual displays allow simultaneous network and spectrum analysis.
Testwall can supply the used Keysight (Agilent) 4396B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 4396B.
