Keysight (Agilent)

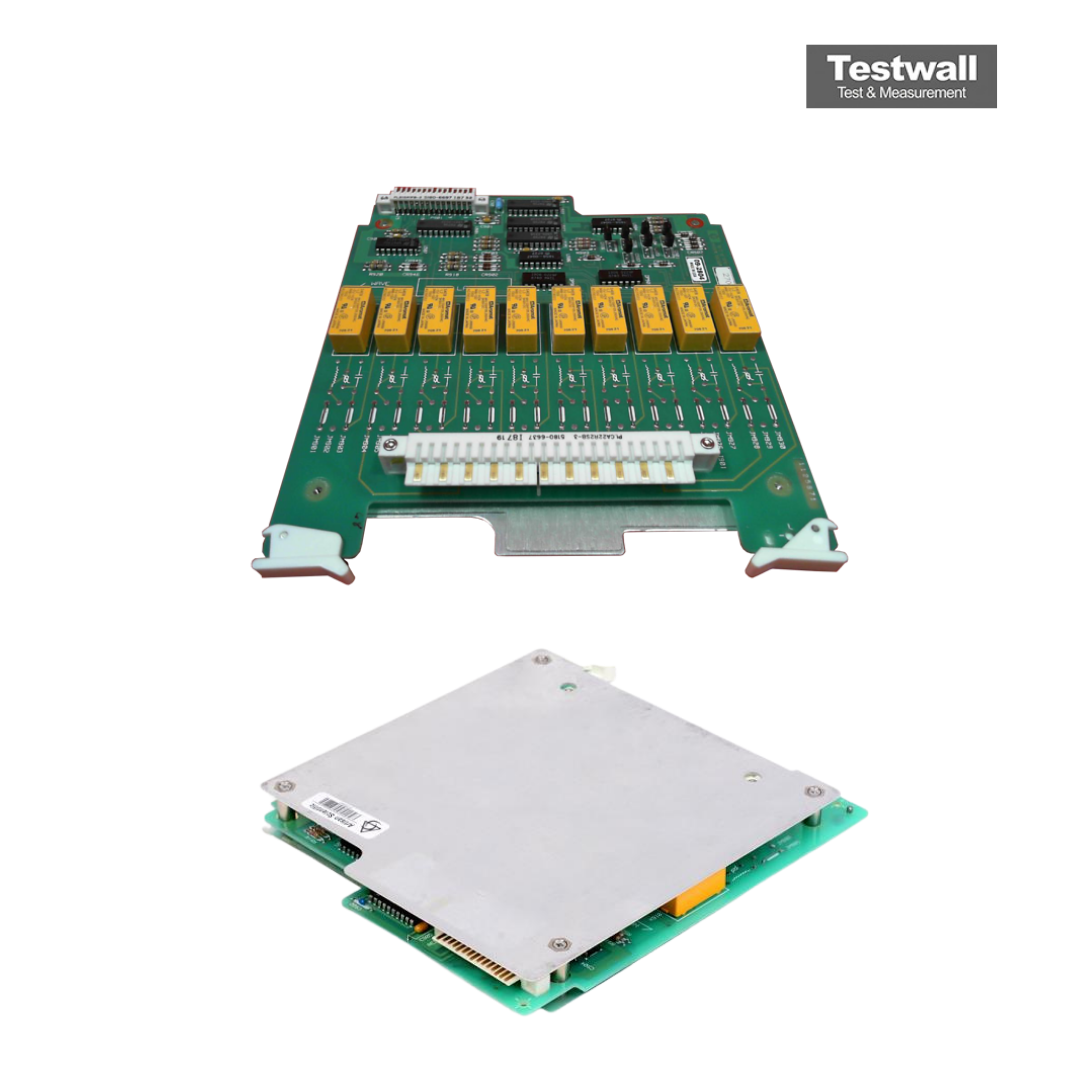

Keysight (Agilent) 44471A
10 Channel General Purpose Relay Module
10 Channels Number of Channels
General Purpose Single-Pole Double-Throw (SPDT) Relay Switch Type
300 VDC Maximum Voltage (DC)
250 VAC Maximum Voltage (AC)
1 A Maximum Current
| Attribute | Value |
|---|---|
| Number of Channels | 10 Channels |
| Switch Type | General Purpose Single-Pole Double-Throw (SPDT) Relay |
| Maximum Voltage (DC) | 300 VDC |
| Maximum Voltage (AC) | 250 VAC |
| Maximum Current | 1 A |
| Maximum Power | 50 W / 100 VA |
| Contact Resistance | 100 mΩ Maximum |
| Operate Time | 10 ms Maximum |
| Compatible Mainframe | Keysight 3499A/B/C Switch/Control System |
| Form Factor | Plug-In Module |
Keysight (Agilent) 44471A Options:
- 44471A - 44481A - Screw terminal block for Agilent 44471A
| Model | 44471A |
|---|
The Keysight (Agilent) 44471A General Purpose Relay Module features ten independent SPST relays for reliable signal switching and external device control. Designed for use with the 3488A Switch/Control Unit (Option 011), it offers high-quality connections, ideal for switching where multiplexing is unnecessary or for delivering switchable power to a device under test. Each relay operates independently, enabling flexible routing in test configurations.
Ideal for versatile switching tasks in automated systems requiring direct, reliable relay control.
Testwall can supply the used Keysight (Agilent) 44471A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 44471A.
