Pendulum DA-35 & DA-36
10 MHz – 3 GHz Frequency Range
1 Hz Frequency Resolution
50 ps Time Interval Resolution
2 Channels (A and B) Input Channels
50 Ω / 1 MΩ selectable Input Impedance
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz – 3 GHz |
| Frequency Resolution | 1 Hz |
| Time Interval Resolution | 50 ps |
| Input Channels | 2 Channels (A and B) |
| Input Impedance | 50 Ω / 1 MΩ selectable |
| Voltage Range | 100 mV – 20 V (1 MΩ), 100 mV – 5 V (50 Ω) |
| Timebase Accuracy | ±1 ppm (aging per year) |
| Measurement Functions | Frequency, Period, Time Interval, Pulse Width, Duty Cycle, Rise/Fall Time, Phase |
| Interface | GPIB (IEEE-488), RS-232 |
| Display | 9-digit LED display |
Pendulum DA-35 & DA-36 Options:
- DA-35 - DA-35/10 - 10-slot mainframe incl power supply
- DA-35 - DA-35/02 - 2-slot mainframe incl power supply
- DA-35 - DA-35/21 - 4x BNC inputs
- DA-35 - DA-35/22 - 4x BNC outputs
- DA-35 - DA-35/23 - 1x opto input, 4x BNC outputs
- DA-35 - DA-35/24 - 4x opto outputs
- DA-35 - DA-35/11 - Blindpanel (for unused slots)
- DA-35 - DA-35/12 - Rackmount kit for DA-35/02

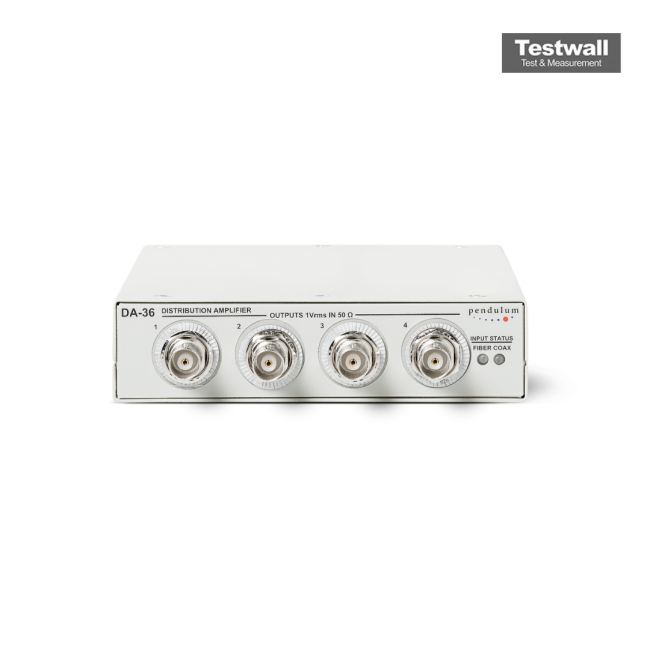

- DA-36 - DA-36 - Distribution amplifier incl power supply
- DA-35 - DA-35/xx-5M - 5MHz sine, 50W distribution
- DA-35 - DA-35/xx-2M - 2.048 MHz sine, 75W distribution
- DA-36 - DA-36-5M - 5MHz sine, 50W distribution
- DA-36 - DA-36-2M - 2.048 MHz sine, 75W distribution
| Model | DA-35 |
|---|
- Low noise and long-distance distribution of reference frequenciues
- Drive up to 2 km of optical fibre
- Eliminate ground current loop problems
- Low-loss distribution
- No noise and interference pick-up
- Easy to install - flexible, lightweight and small- diameter cable
- EMP-proof
- Flexible solution
