Keysight (Agilent) 54540A
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 2 GSa/s |
| Memory Depth | 32 Kpoints per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 500 ps/div to 5 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 8.5-inch color display |
| Trigger Types | Edge, Glitch, Pattern, State, Delay, TV |
| Model | 54540A |
|---|

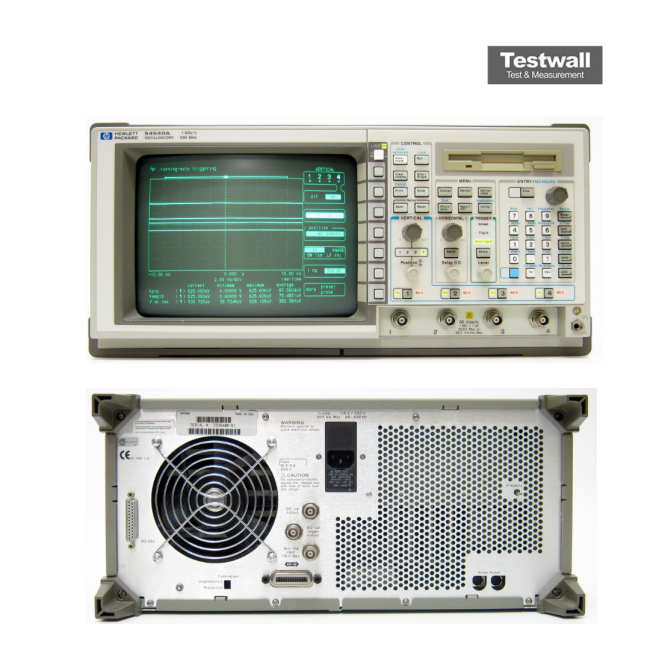

The Keysight (Agilent) 54540A is a 500 MHz real-time oscilloscope with 4 channels, 2 GSa/s sample rate, and 1 ns peak detect. It includes 32 K memory per channel and offers advanced triggering, FFT analysis, and a built-in floppy drive for data storage.
Ideal for analog/digital design, R&D, and manufacturing tests, it captures critical signals via sequential single shot acquisition and provides accurate waveform analysis with optional display formats.
Testwall can supply the used Keysight (Agilent) 54540A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54540A.
