Keysight (Agilent)

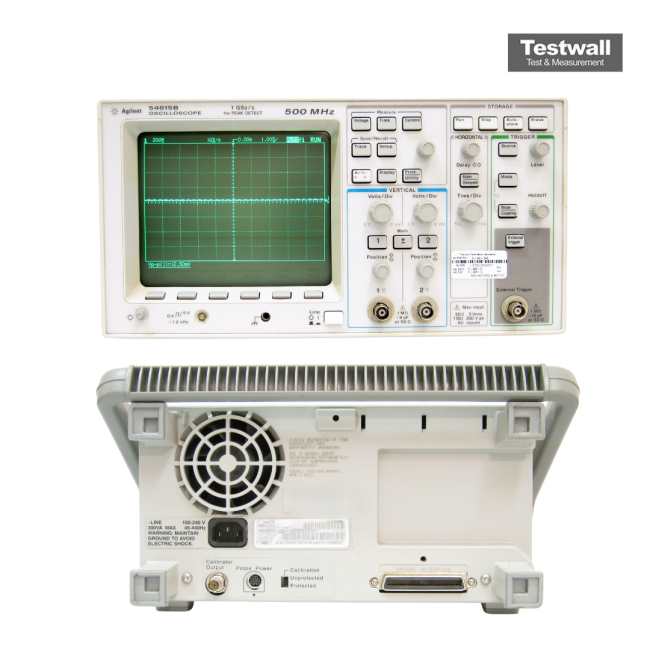

Keysight (Agilent) 54615B
2 Channel 500MHz 1GS/s Digital Storage Oscilloscope
500 MHz Bandwidth
2 Number of Channels
1 GSa/s Sample Rate
2 Mpoints per channel Memory Depth
700 ps Rise Time
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 2 |
| Sample Rate | 1 GSa/s |
| Memory Depth | 2 Mpoints per channel |
| Rise Time | 700 ps |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 2 ns/div to 5 s/div |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 2 pF |
| Display | 8.4-inch color LCD |
| Input Coupling | AC, DC, Ground |
Keysight Technologies 54615B Options:
- 54615B - Opt. 001 - RS-03 Magnetic interface shielding added to CRT
- 54615B - Opt. 002 - RE-02 Display Shield added to CRT (to reduce radiated interface)
- 54615B - Opt. 0B0 - Delete Manual
- 54615B - Opt. W50 - Additional 2-year warranty
- 54615B - Opt. 1BP - Mil Std 45662A cal with test data
- 54615B - Opt. 005 - Enhanced TV/Video measurements and triggering
- 54615B - Opt. 090 - Delete probes
- 54615B - Opt. 101 - 10098A Accessory pouch & front panel cover
- 54615B - Opt. 103 - 54654A Operator's training kit
- 54615B - Opt. 104 - 1185A Carrying case
- 54615B - Opt. 1CM - 5062-7345 Rack mount kit
- 54615B - Opt. 106 - 34810B BenchLink scope (v1.4 or greater) for Windows
| Model | 54615B |
|---|
The Keysight (Agilent) 54615B is a 2-channel digital oscilloscope offering 500 MHz bandwidth and simultaneous 1 GSa/s sampling, delivering analog-like usability with advanced digital performance. It features 1 ns peak detect, sweep speeds from 1 ns/div to 5 s/div, and optional expansion modules for FFT analysis, waveform storage, and remote control. This model is ideal for users requiring reliable high-speed digitizing at a cost-effective value. Available options include magnetic and display shielding (001, 002), video trigger enhancements (005), additional accessories (101, 103, 104), and rackmount support (1CM).
This scope is built for demanding signal analysis, providing crisp waveform detail and fast response—perfect for R&D, advanced diagnostics, and high-frequency circuit verification.
Testwall can supply the used Keysight (Agilent) 54615B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54615B.
