Keysight (Agilent)

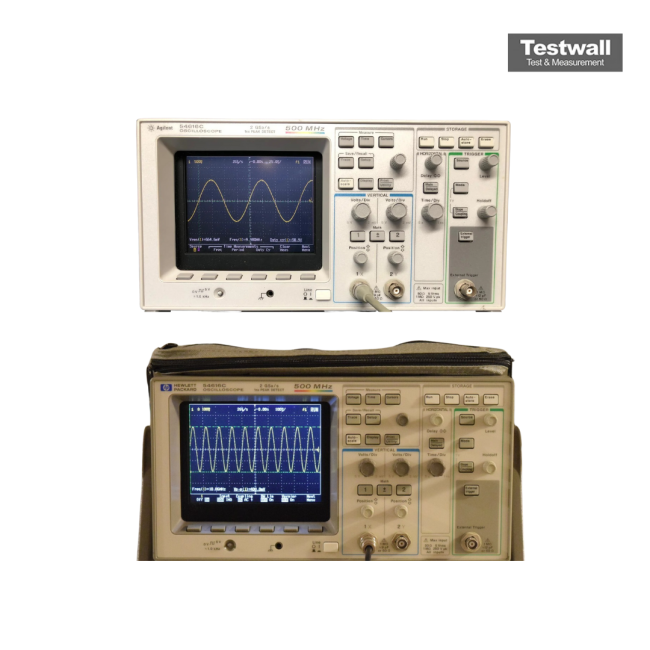

Keysight (Agilent) 54616C
2 Channel 500MHz 2GS/s Digitising Scope
500 MHz Bandwidth
2 Analog + 16 Digital Number of Channels
2 GSa/s (analog), 250 MSa/s (digital) Sample Rate
2 Mpts per channel Memory Depth
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 2 Analog + 16 Digital |
| Sample Rate | 2 GSa/s (analog), 250 MSa/s (digital) |
| Memory Depth | 2 Mpts per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 2 ns/div to 20 s/div |
| Rise Time | 700 ps |
| Display | 8.4-inch color LCD, 640 x 480 resolution |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 2 pF |
Keysight Technologies 54616C Options:
- 54616C - Opt. 001 - RS-03 Magnetic interface shielding added to CRT
- 54616C - Opt. 002 - RE-02 Display shield added to CRT to reduce radiated interface
- 54616C - Opt. 005 - Enhanced TV/video triggering
- 54616C - Opt. 090 - Delete probes
- 54616C - Opt. 101 - Accessory pouch and front panel cover (10098A)
- 54616C - Opt. 103 - Operator training kit (includes training signal board and lab workbook)
- 54616C - Opt. 104 - Carrying case (protects scope for shipping or baggage checking)
- 54616C - Opt. 106 - HP BenchLink Scope software for Windows (HP 34810B)
- 54616C - Opt. 1CM - Rack Mount Kit (P/N 5062-7345)
- 54616C - Opt. W50 - Additional 2-year warranty (5-year total)
- 54616C - ABA - Manual option: US English
- 54616C - ABD - Manual option: German
- 54616C - ABE - Manual option: Spanish
- 54616C - ABF - Manual option: French
- 54616C - ABZ - Manual option: Italian
- 54616C - ABJ - Manual option: Japanese
- 54616C - AB1 - Manual option: Korean
- 54616C - ABO - Manual option: Taiwan Chinese
| Model | 54616C |
|---|
The Keysight (Agilent) 54616C is a 2-channel digital oscilloscope offering 500 MHz analog bandwidth and 2 GSa/s real-time sampling on both channels simultaneously. Designed with a color display and an intuitive front-panel interface, it delivers the familiar feel of an analog scope while leveraging the power of digital technology. With 1 ns peak detect, pretriggering, autoscale, and sweep speeds from 1 ns/div to 5 s/div, this scope ensures precise waveform capture in demanding applications.
Advanced features include FFT analysis, waveform storage, automated measurements, printer output, and remote PC control—making the 54616C ideal for engineers needing fast and accurate signal diagnostics.
Testwall can supply the used Keysight (Agilent) 54616C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54616C.
