LeCroy WaveMaster 804Zi
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Number of Channels | 4 |
| Sample Rate | 20 GS/s (single channel), 10 GS/s (all channels) |
| Memory Depth | 32 Mpts/Ch (standard), up to 256 Mpts/Ch (optional) |
| Vertical Resolution | 8 bits (up to 11 bits with enhanced resolution) |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 15.3-inch color LCD touchscreen |
| Timebase Range | 20 ps/div to 160 s/div |
| Trigger Types | Edge, Width, Glitch, Pattern, TV, Serial Data, and more |
| Connectivity | USB, Ethernet (LAN), GPIB (optional) |
| Model | WaveMaster 804Zi |
|---|

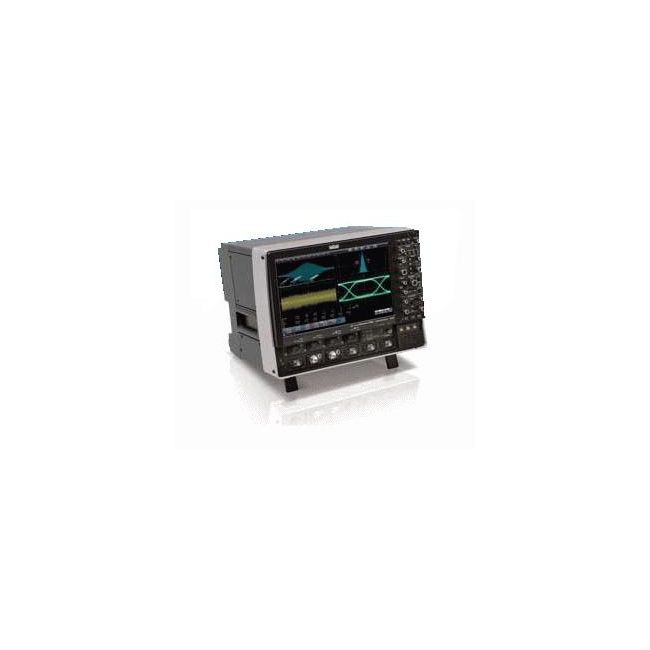

The LeCroy WaveMaster 804Zi is a high-performance real-time oscilloscope featuring a 4 GHz bandwidth, 80 GS/s sample rate per channel, and 256 Mpts/channel memory for comprehensive signal analysis. It includes dual impedance inputs (50 Ω & 1 MΩ) and a complete protocol measurement suite with Eye Doctor II.
Optimized for high-speed applications, the WaveMaster 804Zi offers a large touchscreen display, high-speed data interface, and flexible analysis capabilities.
Testwall can supply the used LeCroy WaveMaster 804Zi, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy WaveMaster 804Zi.
