Keysight (Agilent) 54642A
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 2 Analog Channels |
| Sample Rate | 4 GSa/s (single-channel), 2 GSa/s (two-channel) |
| Memory Depth | 2 Mpts per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 2 ns/div to 50 s/div |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 2 pF |
| Display | 8.4-inch color LCD display |
| Trigger Types | Edge, Glitch, Pattern, CAN, LIN, I2C, SPI, USB |
Keysight Technologies 54642A Options:
- 54642A - 003 - Shielding Option for use in severe environments or with sensitive devices under test – shields both ways (in and out): RS-03 Magnetic interface shielding added to CRT, and RE-02 display shield added to CRT to reduce radiated interference
- 54642A - 1CM - Rackmount kit (same as 1186A)
- 54642A - A6J - ANSI/NSCL Z540 calibration with test data (replaces 1BP)
- 54642A - W32 - 3-year, customer-return calibration service
- 54642A - W34 - 3-year, customer-return standard comp cal service
- 54642A - W50 - Additional 2-year warranty (5 year total)
- 54642A - W52 - 5-year, customer-return calibration service
- 54642A - W54 - 5-year, customer-return standard comp cal service
- 54642A - ABA - Manual Option: English
- 54642A - ABJ - Manual Option: Japanese
- 54642A - AB2 - Manual Option: Simplified Chinese
| Model | 54642A |
|---|

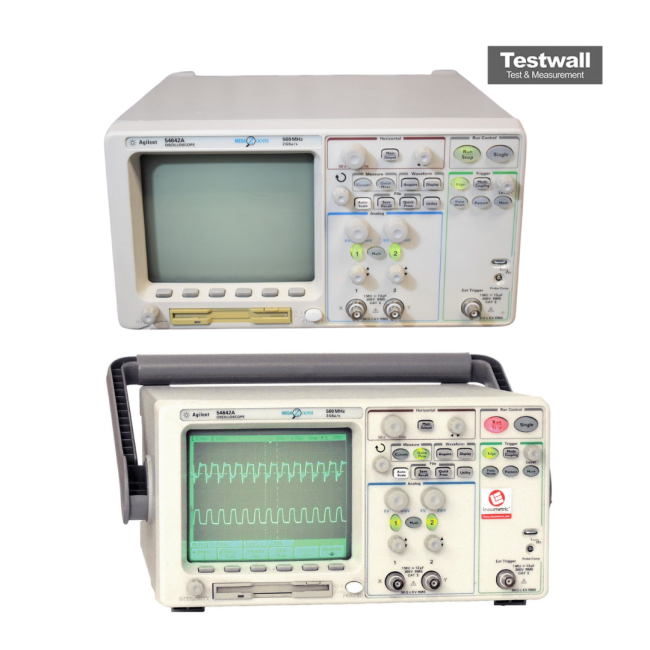

The Keysight (Agilent) 54642A Oscilloscope offers 500 MHz bandwidth and 2 GSa/s sampling, delivering high-resolution signal analysis for demanding applications. Featuring MegaZoom deep memory (8 MB) with 32 intensity levels and 25 million vectors/sec, it ensures detailed capture of long time intervals without compromising speed. Its high-definition display and flexible triggering support protocols like I²C, SPI, LIN, CAN, and USB, making it a powerful tool for embedded design debugging.
Ideal for engineers needing precision and clarity, the 54642A includes built-in FFT, RS-232, parallel, and floppy ports, and multilingual Quick Help. It excels in digital and serial data applications.
Testwall can supply the used Keysight (Agilent) 54642A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54642A.
