Keysight (Agilent)

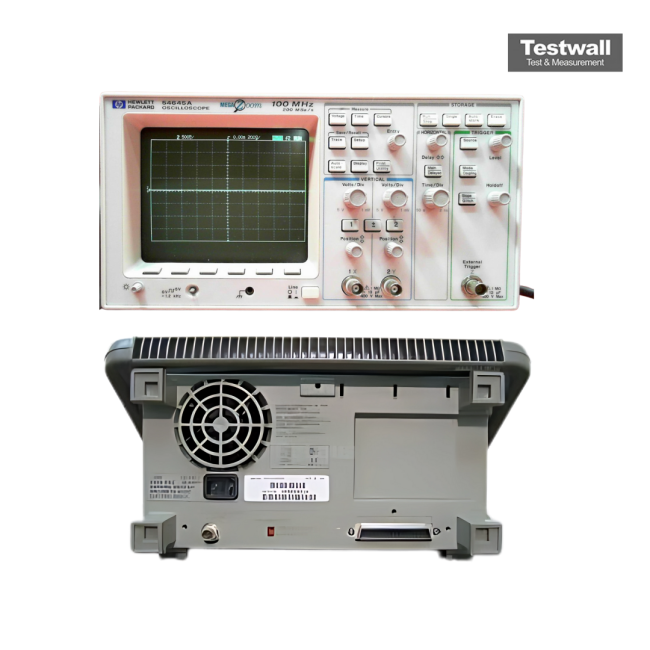

Keysight (Agilent) 54645A
2 Channel 100MHz 200Ms Digital Scope
100 MHz Bandwidth
2 Analog + 16 Digital Number of Channels
200 MSa/s (analog), 400 MSa/s (single-shot digital) Sample Rate
2 Mpts per channel Memory Depth
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 Analog + 16 Digital |
| Sample Rate | 200 MSa/s (analog), 400 MSa/s (single-shot digital) |
| Memory Depth | 2 Mpts per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 2 ns/div to 50 s/div |
| Display | 6.5-inch color LCD display |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 2 pF |
| Trigger Types | Edge, Glitch, Pattern, State, Delay, Duration, Serial (optional) |
Keysight Technologies 54645A Options:
- 54645A - Opt 090 - Delete Probes for HP 54645A
- 54645A - Opt 101 - Accessory Pouch and Front-Panel Cover (HP 10098A)
- 54645A - Opt 103 - Operator's Training Kit (HP 54654A)
- 54645A - Opt 104 - Carrying Case (HP 1185A)
- 54645A - Opt 106 - BenchLink Software (HP 34810B)
- 54645A - Opt W50 - Additional Two-Year Warranty (for a total of five years)
| Model | 54645A |
|---|
The Keysight (Agilent) 54542A Digital Oscilloscope delivers high-resolution waveform analysis with a 500 MHz analog bandwidth across four channels and a sample rate of 2 GSa/s per channel. With 1 ns peak detection, 32 K acquisition memory per channel, and sequential single-shot acquisition, it is built to capture rapid, successive events in advanced electronic designs. A built-in 3.5" disk drive supports multi-format data saving directly from the unit.
Ideal for telecom, embedded system, and RF diagnostics, the 54542A supports active and SMT probing with options such as the 1145A 750 MHz probe and 1144A 800 MHz active probe. Optional telecom mask test software and ScopeLink software enable extended protocol verification and signal integrity validation.
Testwall can supply the used Keysight (Agilent) 54542A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54542A.
